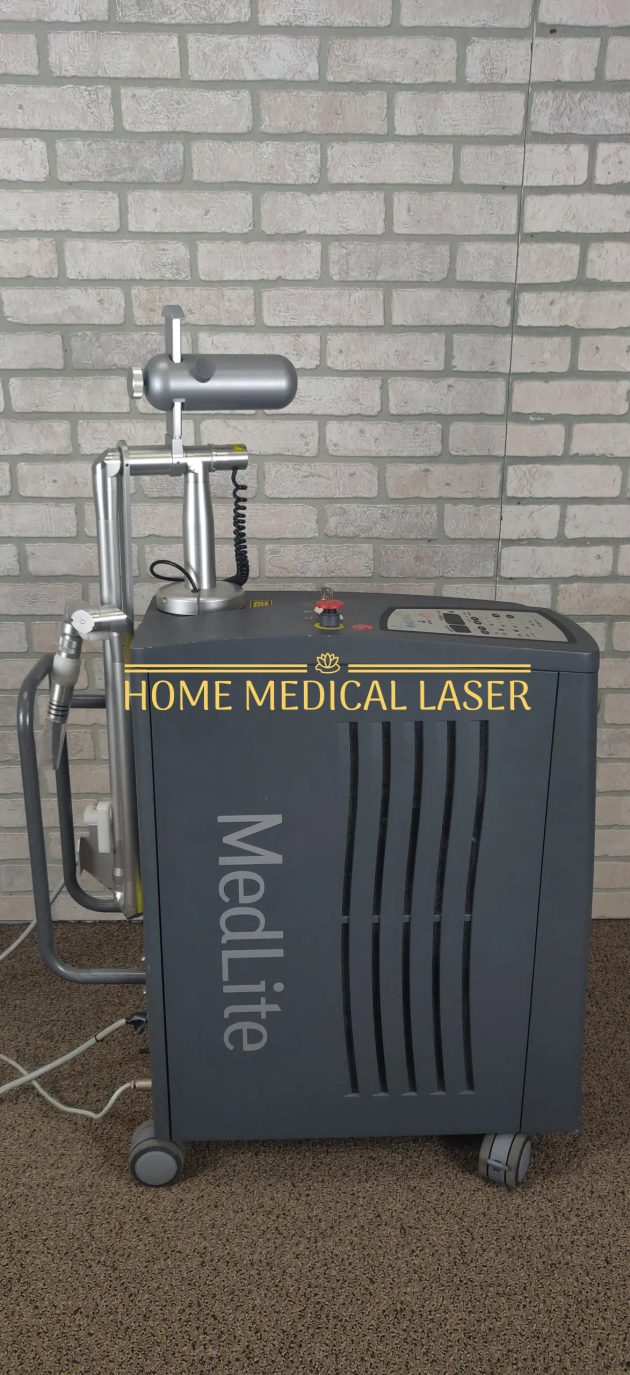

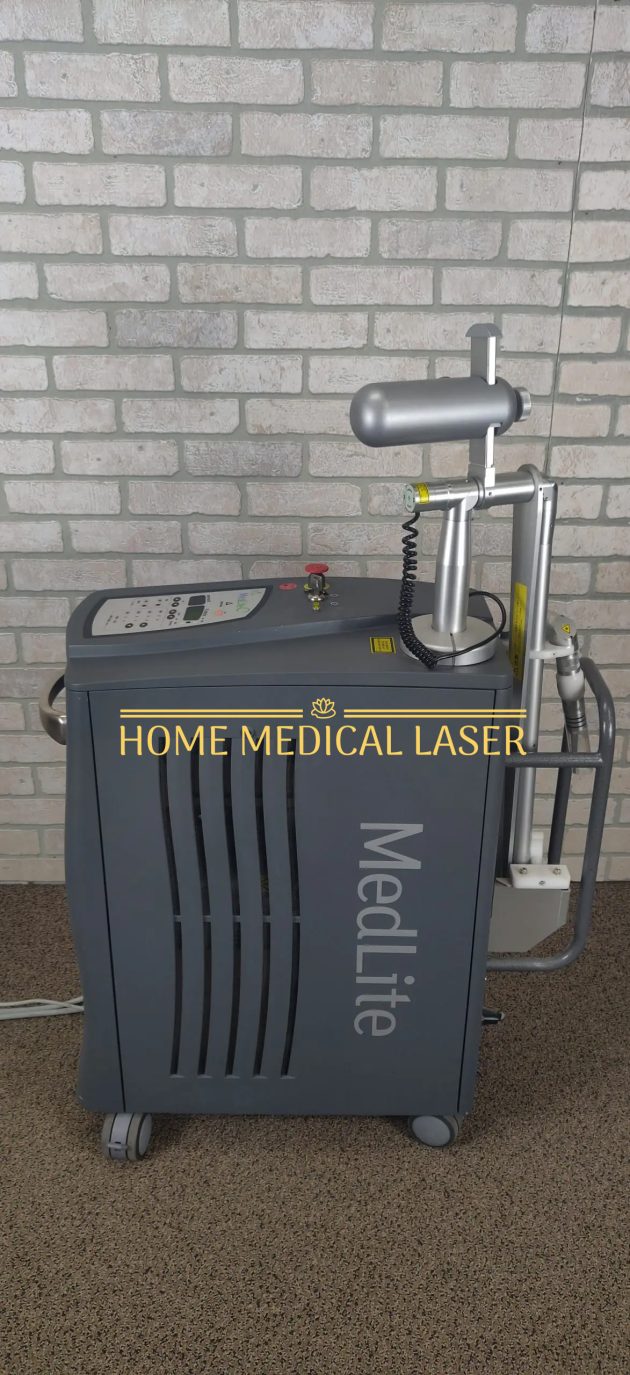

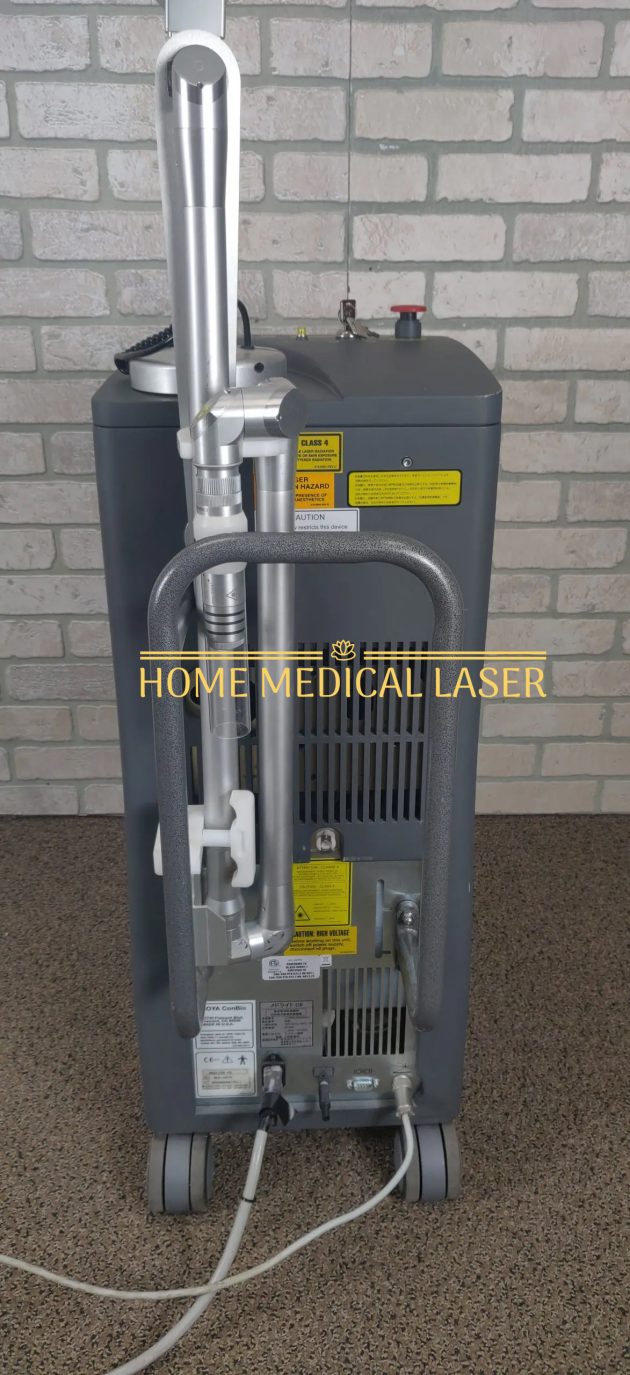

Hoya Con Bio Cynosure Medlite C6

Hoya Con Bio Cynosure Medlite C6

Hoya Con Bio Cynosure Medlite C6 – Specifications

Laser Medium: Nd YAG & Dye Impregnated Polymers

Operating Parameters: EO Q-Switched, Nominal Delivered Energy at end of Articulated Arm with no Handpiece: 1064 nm:1.0 Joule; 532 nm:400 mJ

Converted Wavelengths: 585 nm:250 mJ; 650 nm:150 mJ

Nominal Pulse Energy Density:

1064 nm:12.0 J/cm2 @ 3.0 mm spot size

532 nm: 5.0 J/cm2 @ 2.0 mm spot size

585 nm: 8.0 J/cm2 @ 2.0 mm spot size

650 nm: 4.5 J/cm2 @ 2.0 mm spot size

Pulse Width: 5-20 ns

Rep Rate: Single shot, 1, 2, 5, and 10 Hertz

Spot Size: 1064 nm:3, 4, 6 & 8 mm; 532 nm: 2, 3, 4 & 6 mm

Cooling: Closed Cycle Water to Air Heat Exchanger

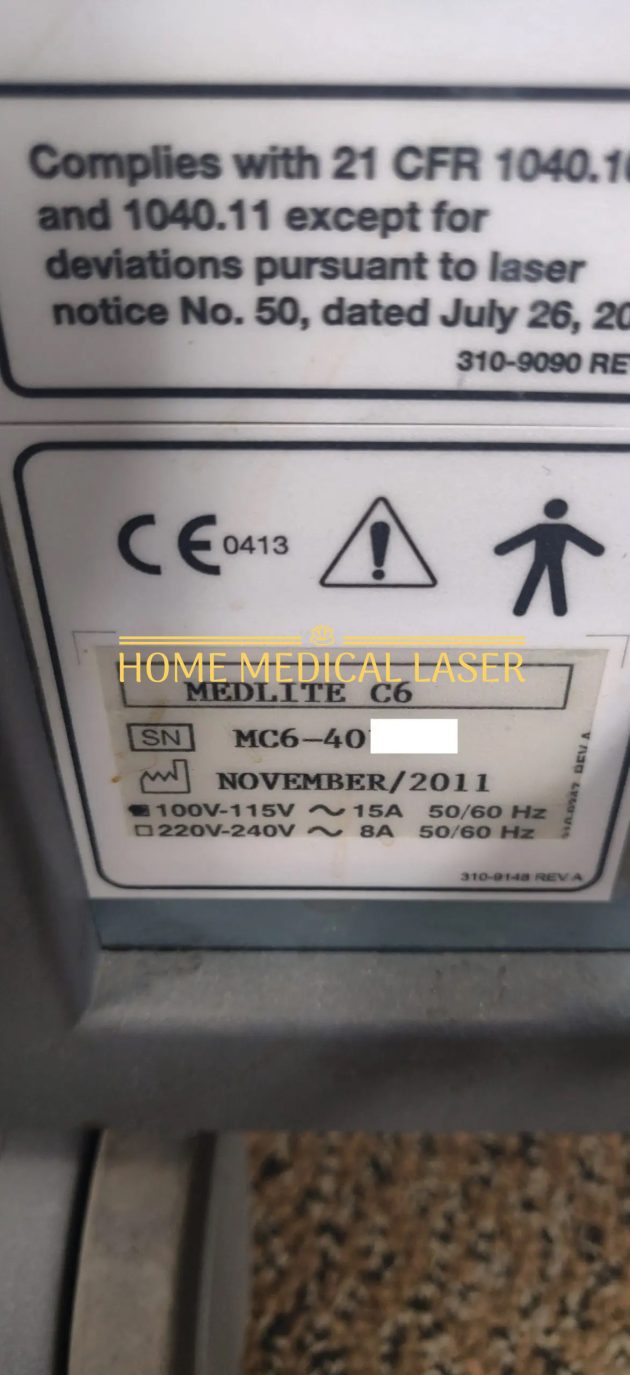

Input Power: 220 V, Single Phase, 8 Amps or 110 V, Single Phase, 15 Amps

Weight: 127 Pounds (58 kg)

Size: 28.5 in. (72.5 cm) Depth x 12 in. (30.5 cm) Width x 31.8 in. (81 cm) Height, without articulated arm 44.5 in. (113 cm) Height

MedLite C6 Clinical Procedures:

• Multi-Color Tattoo Removal
• Wrinkle Reduction
• Acne Scar Reduction
• Non-Ablative Skin Resurfacing
• Pigmented Lesion (sun spot) Removal
• Hair Removal
• Vascular Lesion Removal
• Dermal Lesions
• Nevus of Ota

In 1992, ConBio launched the original MedLite laser, introducing PhotoAcoustic technology to the dermatology community – the use of high peak power and nanosecond pulse duration to target chromophores with a photomechanical action. This non-ablative Q-Switched Nd:YAG gave practitioners the ability to treat a wide range of aesthetic indications safely and effectively, with no downtime or patient discomfort.Since then, the MedLite has evolved, incorporating more sophisticated engineering, more power and greater efficiences. PhotoAcoustic technology is delivered through a superior flat-top beam profile – a hallmark of the MedLite laser – without spikes or hot spots that are prevalent in other Q-Switched Nd: YAG lasers.

Today, the MedLite C6 laser is the workhorse of many aesthetic practices worldwide.

The Benefits of a MedLite C6 EO Q-switched Laser

A MedLite C Series laser is a safe, premium-engineered, easy-to-use aesthetic laser designed for versatility and effectiveness in a wide variety of applications. ConBio has made continual improvements to the MedLite laser since its introduction in 1992, increasing its power output, reducing its size, and introducing valuable features to maintain high levels of physician and patient satisfaction. Today, the MedLite C6 is best known for its PhotoAcoustic effect, a combination of high power and nanosecond pulse widths that deliver peak energy throughout the layers of the epidermis faster than the normal relaxation time of the tissue. The result is a safe, effective way to harness peak power.

• Compact
• Small footprint
• Designed for easy mobility, making it ideal for practices with limited space or multiple treatment rooms
• Convenient Easy-to-use control panel
• Multi-spot handpiece is ideal for a wide variety of treatment parameters, offering four spot sizes from 2-8 mm
• Articulated arm stores neatly away in a protective, space-saving vertical position when not in use
• Uses standard electrical voltage
• Reliable solid-state technology
• Cost Effective
• Multiple application capabilities and high utilization
• Low maintenance costs
• Dual wavelengths (1064 nm & 532 nm)

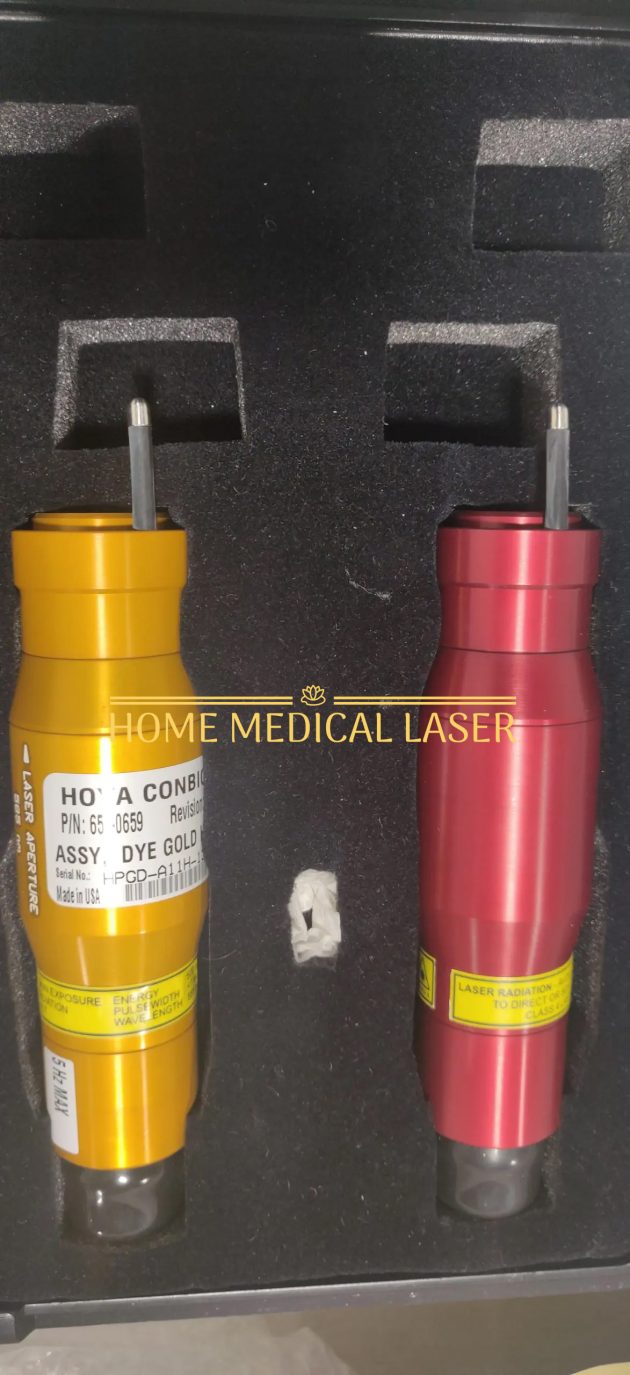

• MultiLite Dye Laser Handpieces expand wavelength capabilities to 585 nm and 650 nm
• Economical, with proven return on investment
