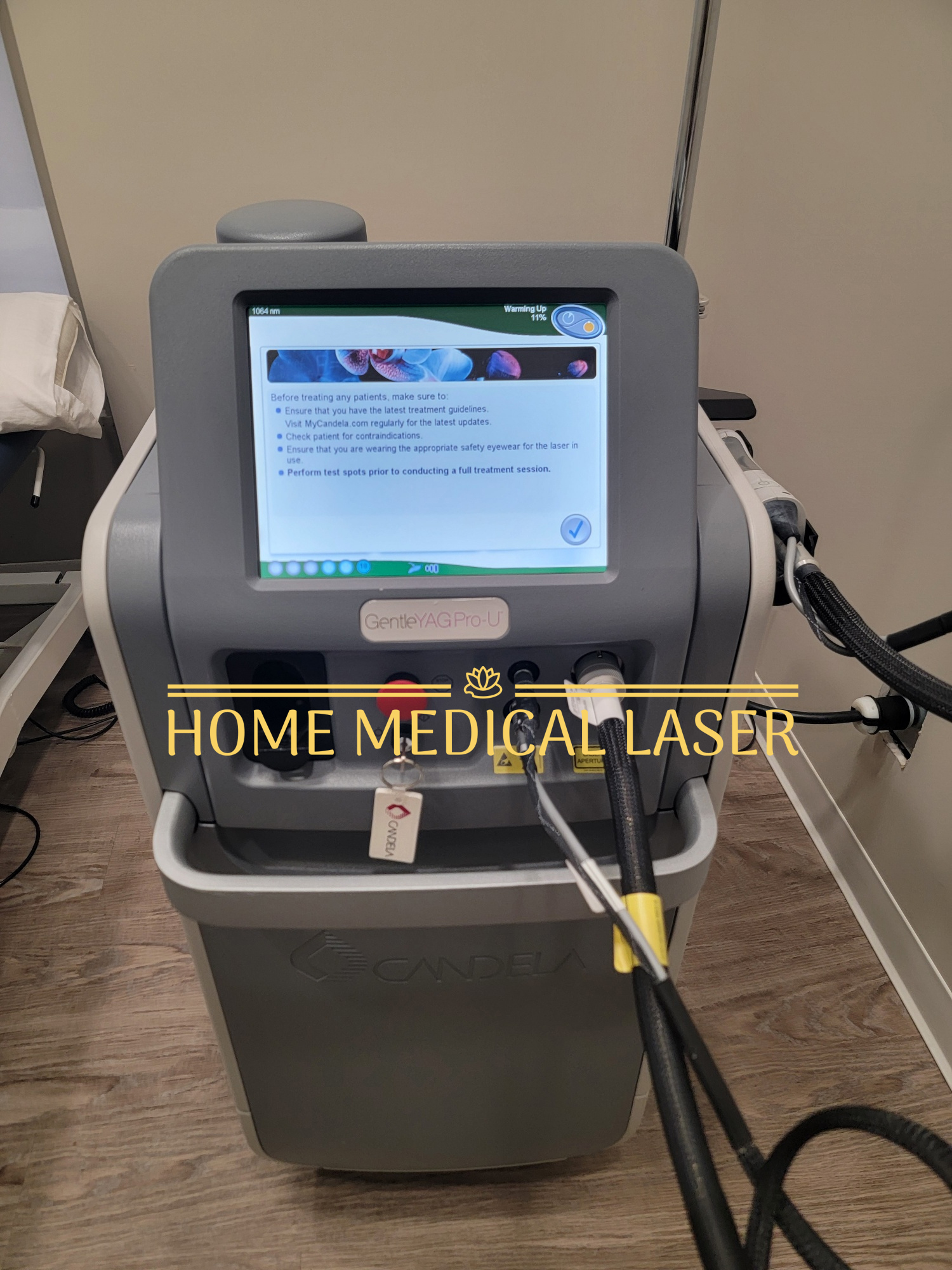

Candela GentleYAG Pro-U

Candela GentleYAG Pro-U 1064nm Nd Yag

Candela GentleYAG Pro-U – PRODUCT SPECIFICATIONS

Laser Type: Nd YAG

Wavelength: 1064 nm

Repetition Rate: Up to 10 Hz

Max Delivered Energy: 80 joules (J)

Pulse Duration: 0.250-100 ms

Spot Sizes: 6 mm, 8 mm, 10 mm, 12 mm, 15 mm, 18 mm

Optional – Specialty Delivery System Option: Spot Sizes Small – 1.5 mm, 3 mm, 5 mm, 3 x 10 mm Large – 20 mm, 22 mm, 24 mm

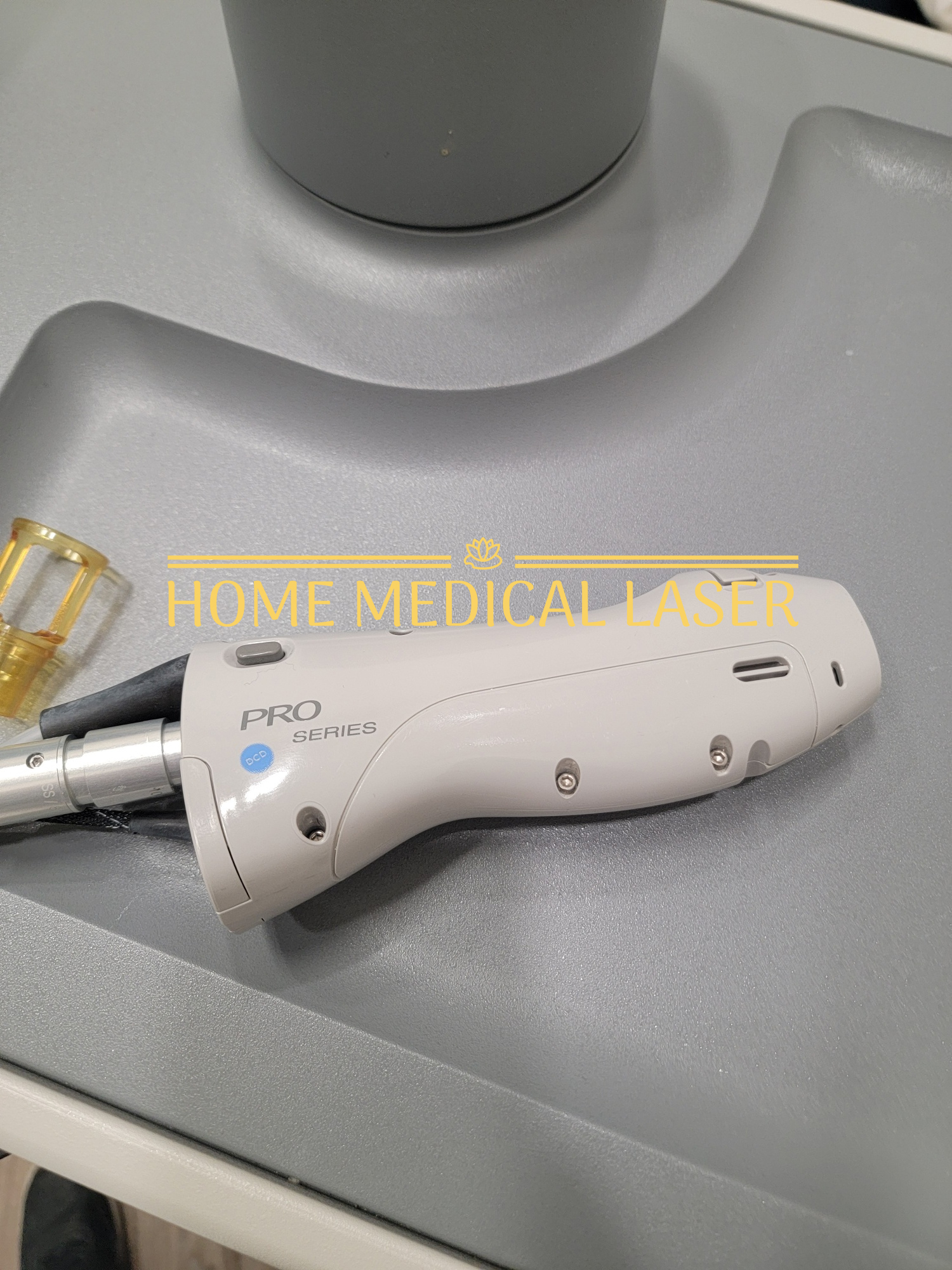

Beam Delivery: Lens-coupled optical fiber with handpiece

Pulse Control: Finger switch, foot switch

Dimensions: 107 cm H x 46 cm W x 69 cm D (42” x 18” x 27”)

Weight: 118 kg (260 lbs)

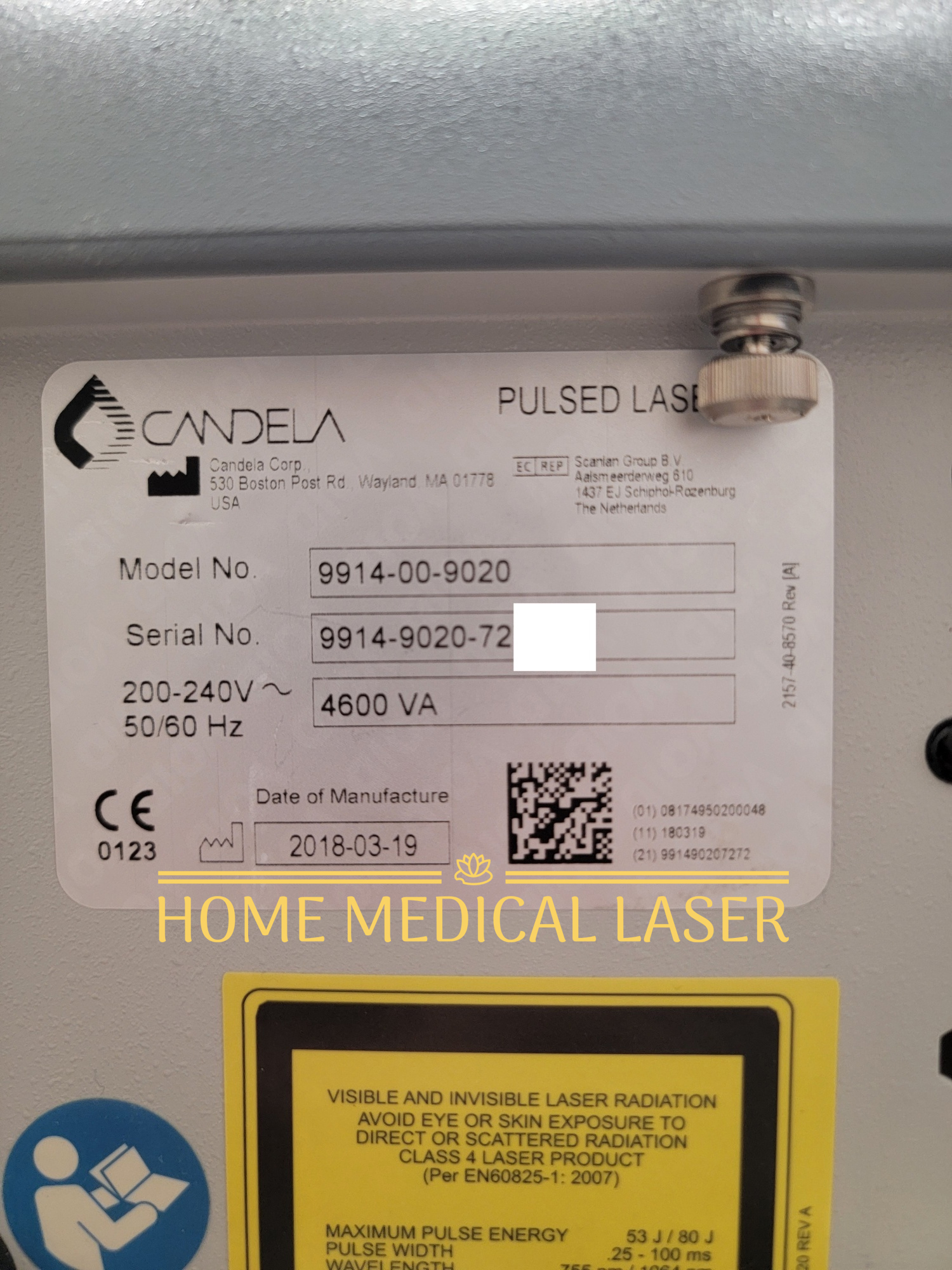

Electrical: 200-240 VAC, 50-60 Hz, 20-30 A, 4600 VA single phase (30 A required for highest repetition rates)

Optional Dynamic Cooling Device Integrated controls, cryogen container and handpiece with distance gauge:

Cryogen: HFC 134a

DCD Spray Duration: User adjustable range: 10-100 ms

DCD Delay Duration: User adjustable range: 3, 5, 10-100 ms

DCD Post Spray Duration: User adjustable range: 0-20 ms

Optional Air Cooling Compatible (ACC) Handpiece Available

Nd:YAG Fluence

1.5: 300 to 520 J/cm2

3: 130 to 400 J/cm2

3 x 10: 80 to 300 J/cm2

5: 9 to 55 J/cm2

6: 6 to 200 J/cm2

8: 6 to 150 J/cm2

10: 6 to 100 J/cm2

12: 10 to 70 J/cm2

15: 7 to 44 J/cm2

18: 6 to 30 J/cm2

20: 5 to 24 J/cm2

22: 4 to 20 J/cm2

24: 3 to 16 J/cm2

GentleYag Pro-U MANUFACTURER NOTES

Candela GentleYAG Pro-U

Introducing the Candela GentleYAG Pro-U

Worldwide leader in aesthetic laser since 1970. Candela identifies themselves as the best laser in the market for ideal solution for hair removal, telangiectasia, telangiectatic matting on the face and the legs, and the treatment of spider veins. The GentleYAG Pro-U is capable of treating most cosmetic conditions on all skin types with the advantage of using different hand-pieces. The Candela GentleYAG Pro-U is especially effective on darker skin tones unlike other lasers, with the GentleYAG Pro-U you are able to choose your desired hand-piece for the kind of treatment needed. Candela is now upgradable for superior performance and clinical indications.

Treatments Candela Gentle

Hair Removal on all skin and hair types
Spider veins
Telangiectasia and telnagiectatic matting on the face and legs
Removal of epidermal pigmented lesions
Sun-damaged skin
Age Spots
Freckles
Treament of vascular anomalies
Freckles
Melasma
Café-au-lait
Seborrheic Keratoses
Permanent hair reduction on all skin types
Hemangiomas
Venous Lakes
Blue Facial Vein

Candela GentleYAG Pro-U
