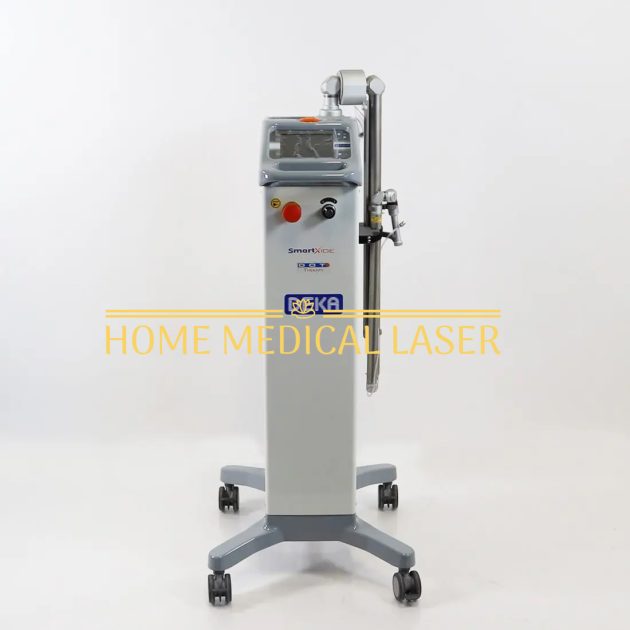

Deka SmartXide CO2 Resurfacing Laser – NEW

SmartXide DOT^® is the only CO₂ laser that works through pulsed emission, utilizing two innovative technologies: SmartPulse and SmartStack.

The SmartPulse technology and the SmartStack function guarantee maximum reliability in controlling the depth of vaporization and the non-ablative thermal effect on the skin. Minimal thermal damage to the surrounding tissue guarantees rapid recovery for the patient.

SmartXide DOT^® is indicated to treat even the most complex cases, such as scarring, surface pigmentation and deep wrinkles, tailoring treatments and downtime to the patient’s needs.

Key Features

• Hi-Scan scanner with Standard or DOT mode
• Independently adjustable Power and dwell time for customizable thermal injury per DOT
• Adjustable DOT spacing from 2-40% per scan; or 100% ablation in Standard mode
• 120-micron spot for fastest healing
• Astonishingly lightweight arm for supreme performance

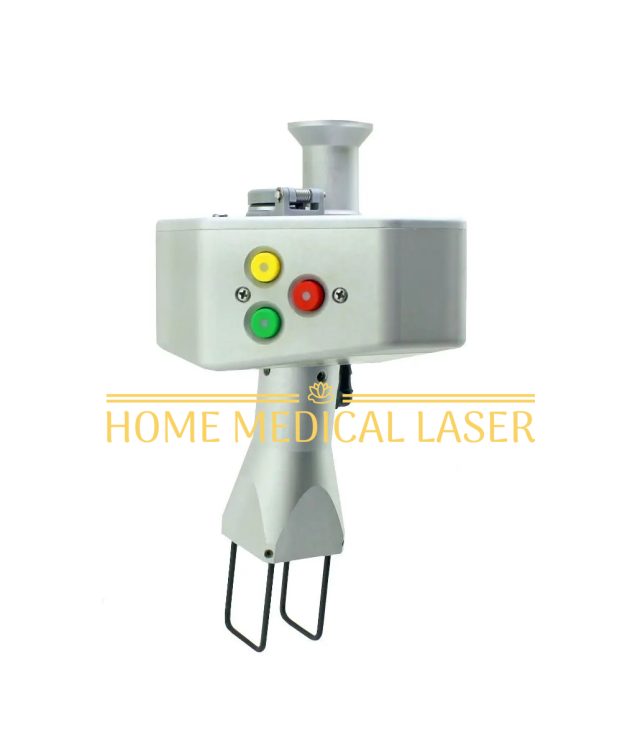

• 3 buttons on the scanning handpiece allow users to adjust energy, shape, and the size of the scanned pattern

Includes

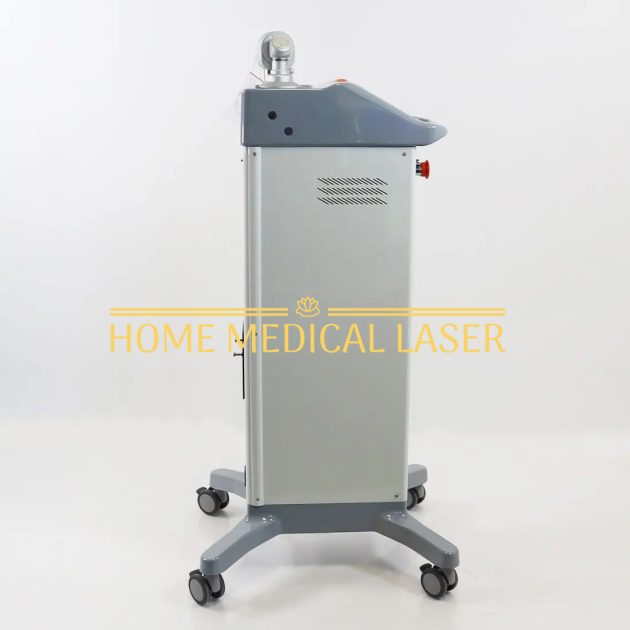

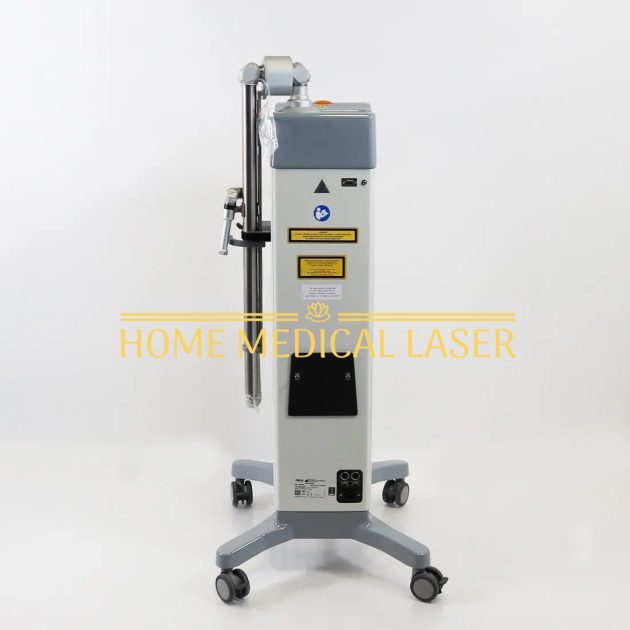

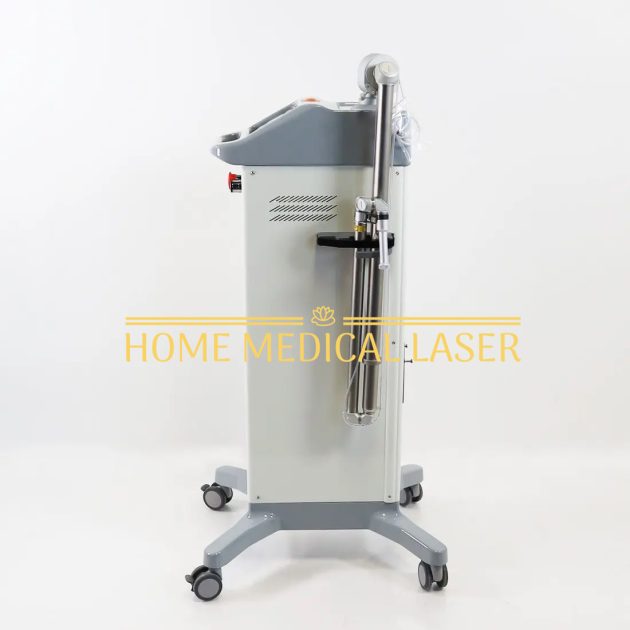

• System
• Scanning Handpiece
• Articulated Arm
• 2 Keys
• Foot Switch
• Interlock

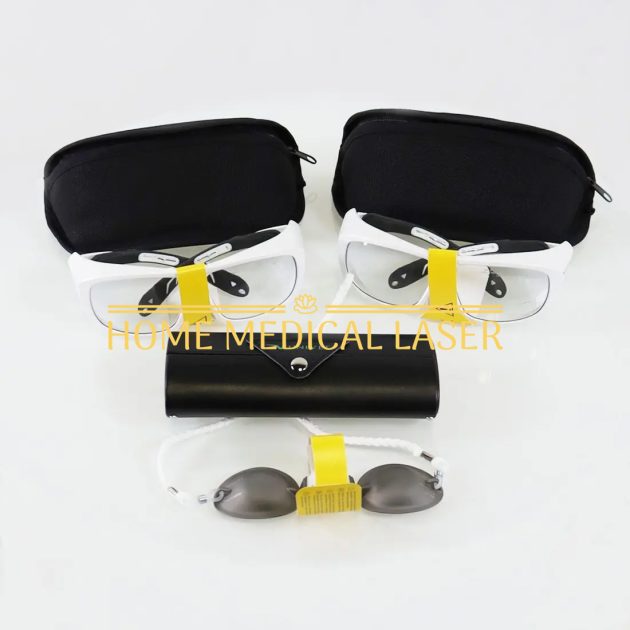

• Operator Glasses
• Patient Eye Shield
• Power Cable
• User’s Manual
• Clinical Guide
• Virtual Operator Training
• 1-Year Warranty

Technical Data

• Laser: CO2
• Wavelength: 10,600nm
• Pulse Energy: Up to 60mJ per Dot
• Pulse width: 200μs to 80ms
• Aiming Beam: Diode Laser, 3 mW@ 635-670 nm
• Spot Sizes: Min: 1mm x 4mm, Max: 15mm x 15mm
• Electrical Requirements: 120 V / 50Hz or 60 Hz
• LCD Screen: 8.4″ Touchscreen
• Dimensions (LxWxH): 482mm x 558mm x 1600mm (not including articulated arm)
• Weight: 95 Lb
