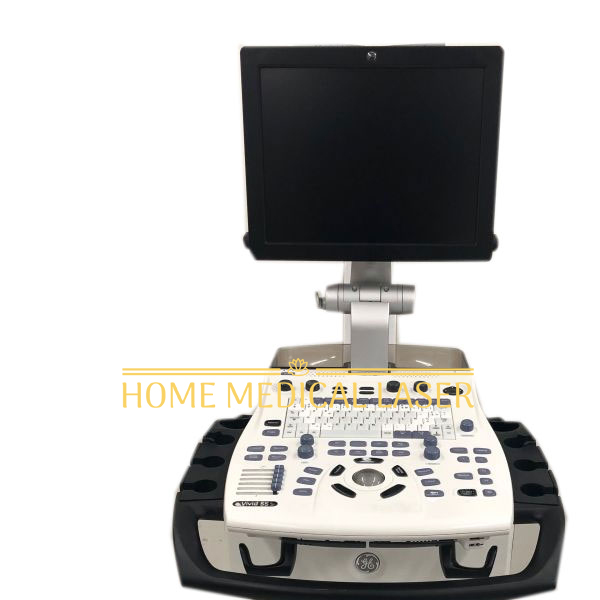

GE Vivid S5 Ultrasound Machine
GE Vivid S5 Ultrasound Machine – used in many hospitals and medical establishments, and for good reason. It provides an amazing level of image quality. The overall initial image quality, as well as the available image enhancement capabilities of this machine, gives technicians the tools needed to obtain incredibly accurate information from the raw data. Contrast imaging is one feature of the Vivid S5 machine that is quite helpful. This increases the echo strength, allowing superior evaluation of even difficult-to-image patients. The S5 also offers Quantitative tissue velocity imaging, which captures moving images dynamically so as to keep them as high-quality, vividly-colored images. One of the stand-out features of the GE S5 is its customized report generation. Data and patient reports can be presented, stored, and generated, however, the ultrasound user would like. This information can be customized either at the scanner machine or at a separate workstation.
Color Doppler Ultrasound
2-D, M-Mode, PW/CW Doppler
Coded Octave Imaging (Harmonics)
ECG Module & 3-lead cable
Anatomical M-Mode Color Angio
EchoPac System post-processing and data archiving
High-Resolution 15″ monitor
Fully Digital
Integrated Digital Stress Echo (optional)
GE Vivid S5 Ultrasound Specifications
System Overview
Monitor (inch): 15″ TFT LCD
Tilt/Rotate Adjustable Monitor: Yes
Monitor Resolution: 1024*768
Image Size Resolution: 800*600
Touch Screen (Inch): No
Trackball or Trackpad: Trackball
CP Back-Lighting: Yes
Weight: 154lbs(70kg)
Probe Ports: 3
Battery: No
Boot-Up Time: Sleep Mode (Quick Start)
Maximum Depth of Field: 30cm
Minimum Depth of Field: 0-2cm
Cart (HCU): no
Independent Steer & Lockable Wheels: Yes
Connectivity
DICOM 3.0: Yes
DICOM SR_Cardiac: Yes
DICOM SR_Vascular: Yes
DICOM SR_OB/GYN: Yes
JPEG, WMV, & AVI: Yes
USB: Yes
HDD/SDD: 80GB
DVD/CD RW: Yes
Wireless LAN: Yes
