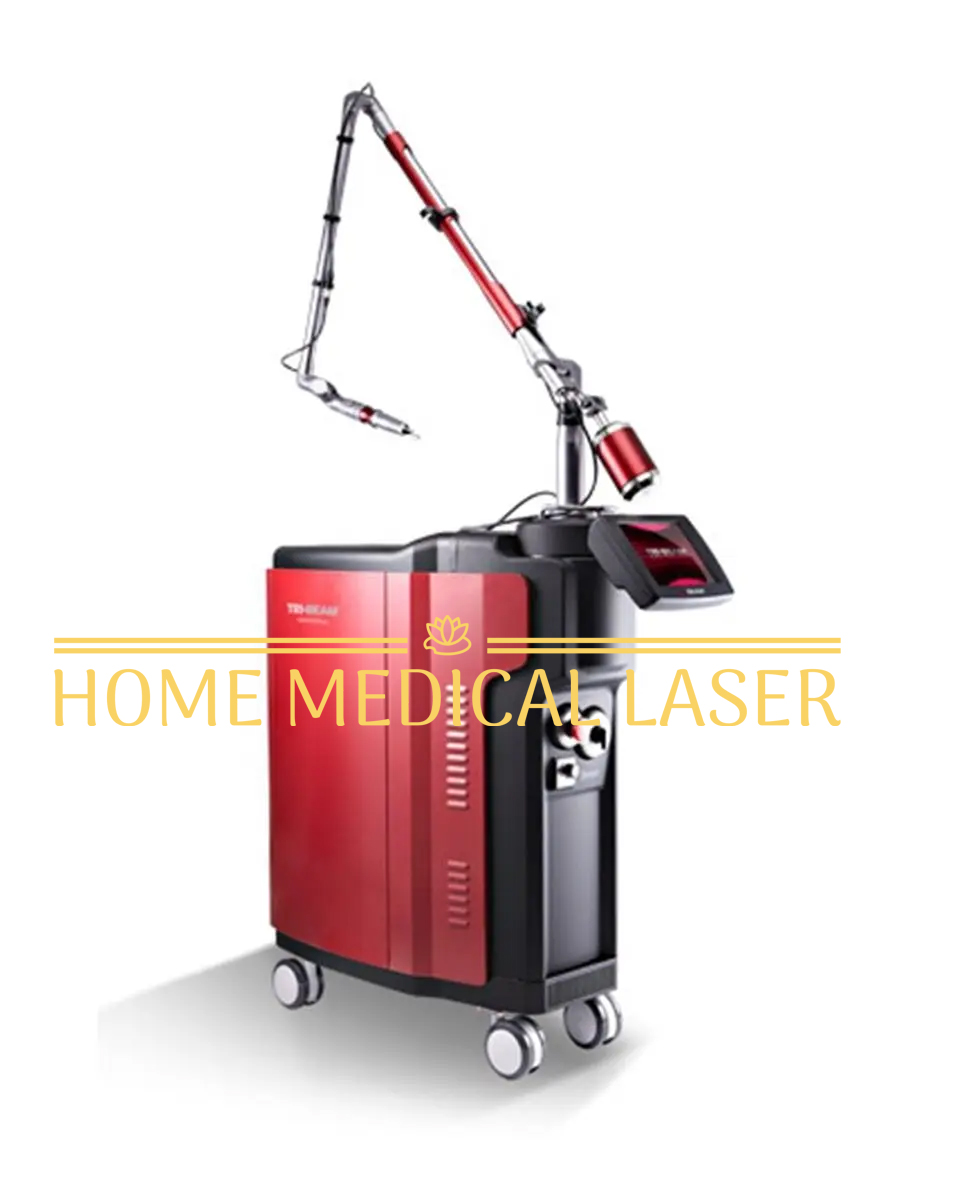

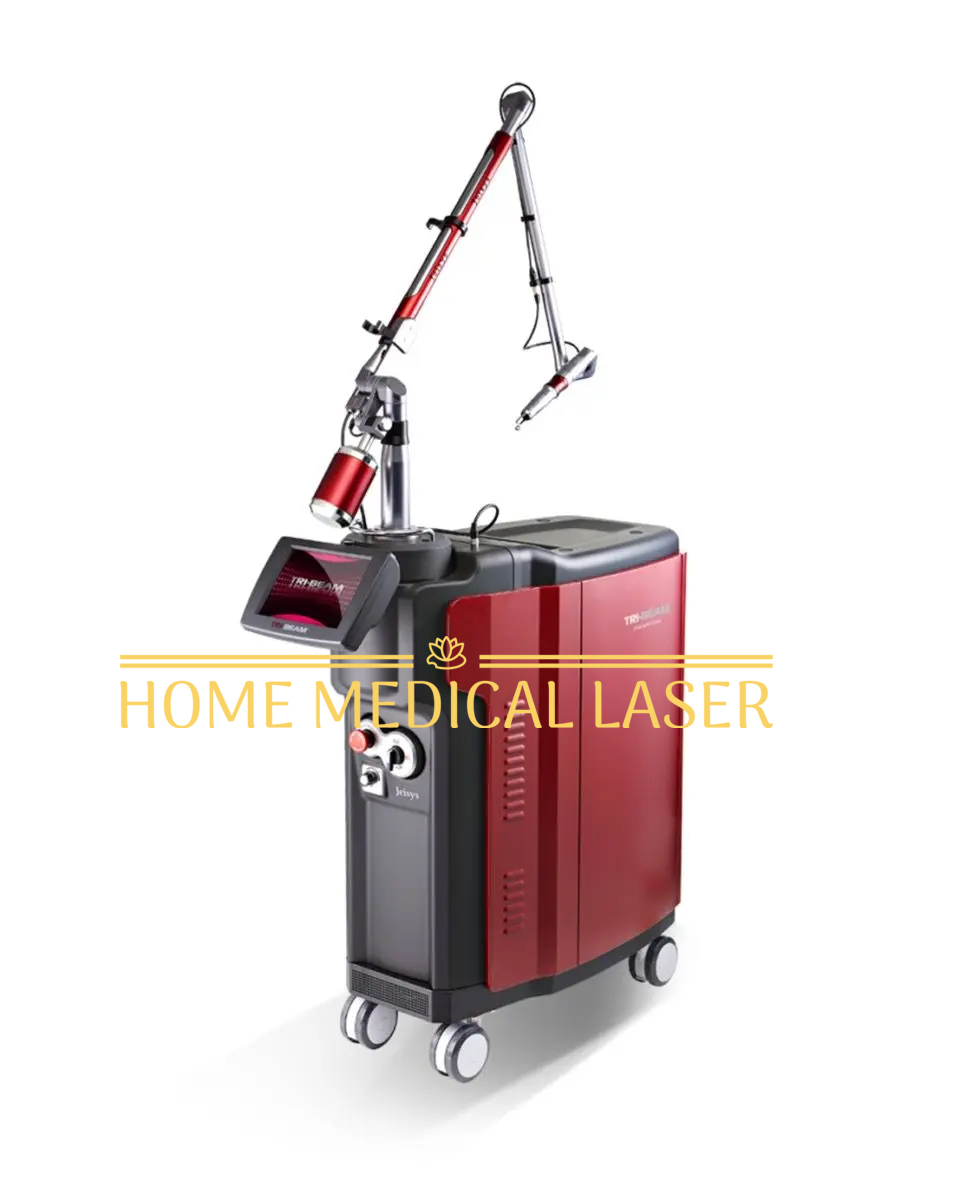

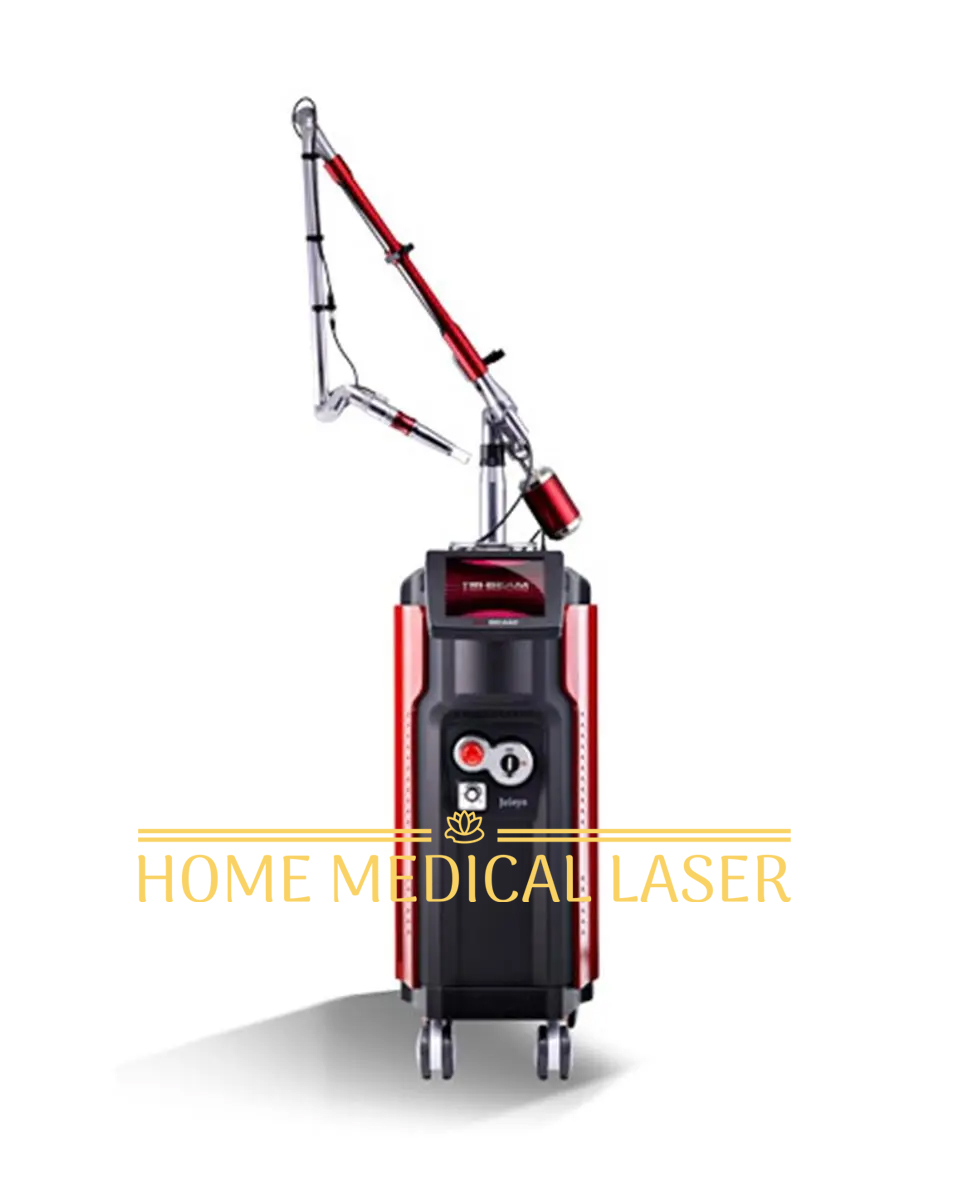

Jeisys TRI-BEAM Q-Switched Laser

Jeisys TRI-BEAM Q-Switched Laser

Jeisys TRI-BEAM Q-Switched Laser –

One system to treat them all

TRI-Beam Premium is an integrated platform offering you the most reliable and efficient combination of lasers available. You no longer need multiple systems to treat a single multicolor tattoo. The result is a more cost-effective platform, greater patient throughput, and a more reliable device. TRI-Beam Premium includes a fractional-focused lens array and free-running mode for skin revitalization.

Rich-PTP™ (Photo-acoustic Toning Pulse) technology is unique to TRI-BEAM. Even with larger spot sizes (adjustable 2 to 10 mm) Rich-PTP™ mode distributes high peak energy into a rapid double pulse allowing for optimal tissue interaction. Rich-PTP™ mode also optimizes Thermal Relaxation Time for targeted melanosomes when treating melasma. When it comes to comfortably treat difficult tattoos and pigmented lesions, Tri-Beam is the answer.

Key Features

20 HZ operation at 1.6 J per pulse
super-fast operation and higher efficacy
Higher power GN mode – 3.5 Joules
Fractional Mode: Treat with confidence
Multiple Wavelengths and Handpieces
Powerful Rich-PTP™ Double Pulse at 20 Hz

Includes

System

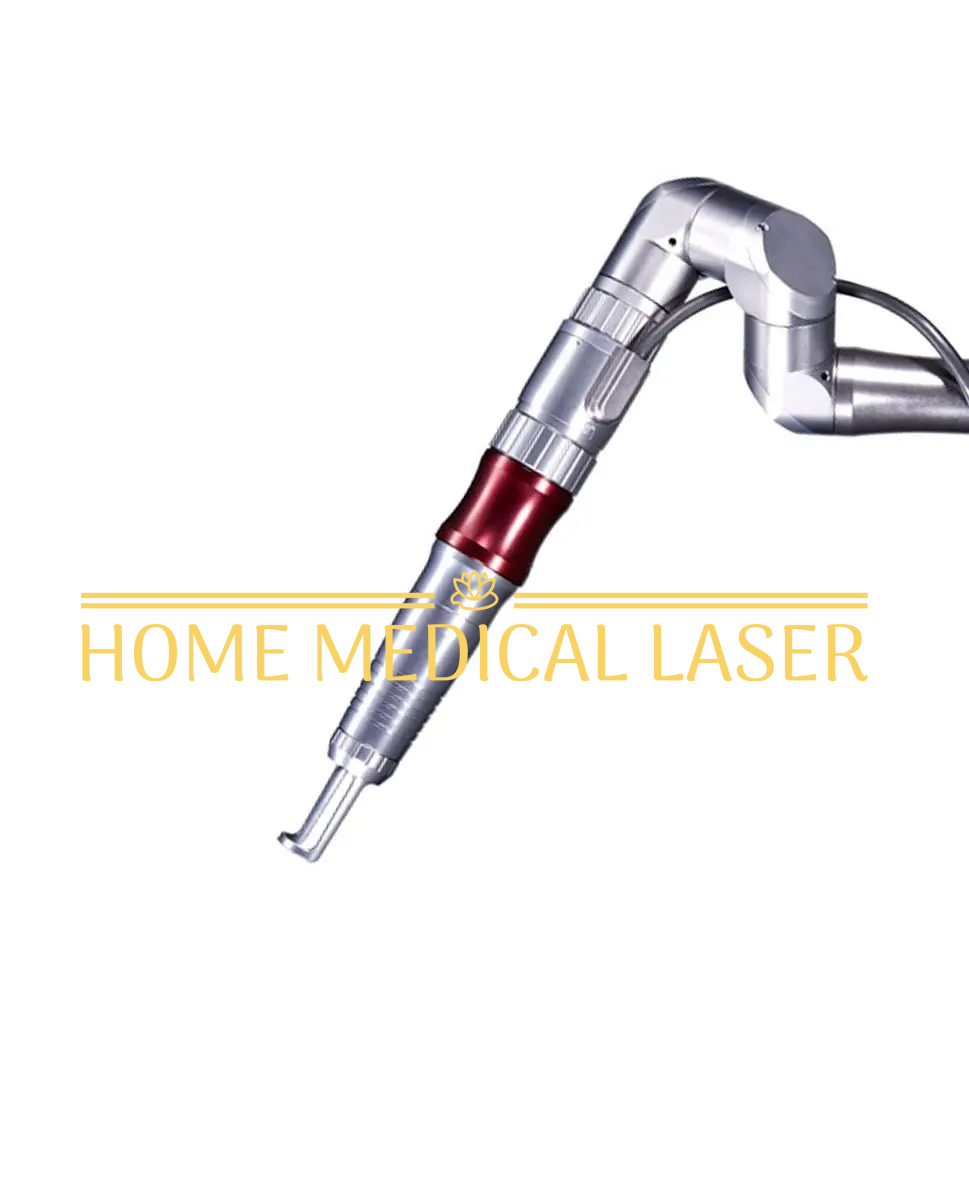

Zoom Handpiece
Collimate Handpiece
Fractional Handpiece
Foot Switch
Onsite Training
User’s Manual
1-Year Warranty and no recert fees

Technical Data

System Type: Nd: YAG (Q-Switched)
Wavelength: 1064/532 nm
Operating Parameters: Q-Switched and Quasi-Long Pulse
Aiming Beam: Diode Laser 655 nm
Beam Profile: True Flat Top
Repetition Rate: Single shot, 1-20 Hz (pulses per sec.)
Energy Calibration: Internal
Spot Sizes: 2mm to 10 mm
Cooling: Closed cycle water to an air heat exchanger
Dimensions (LxWxH): 952mm x 439mm x 952mm
Weight: 242 Lb
