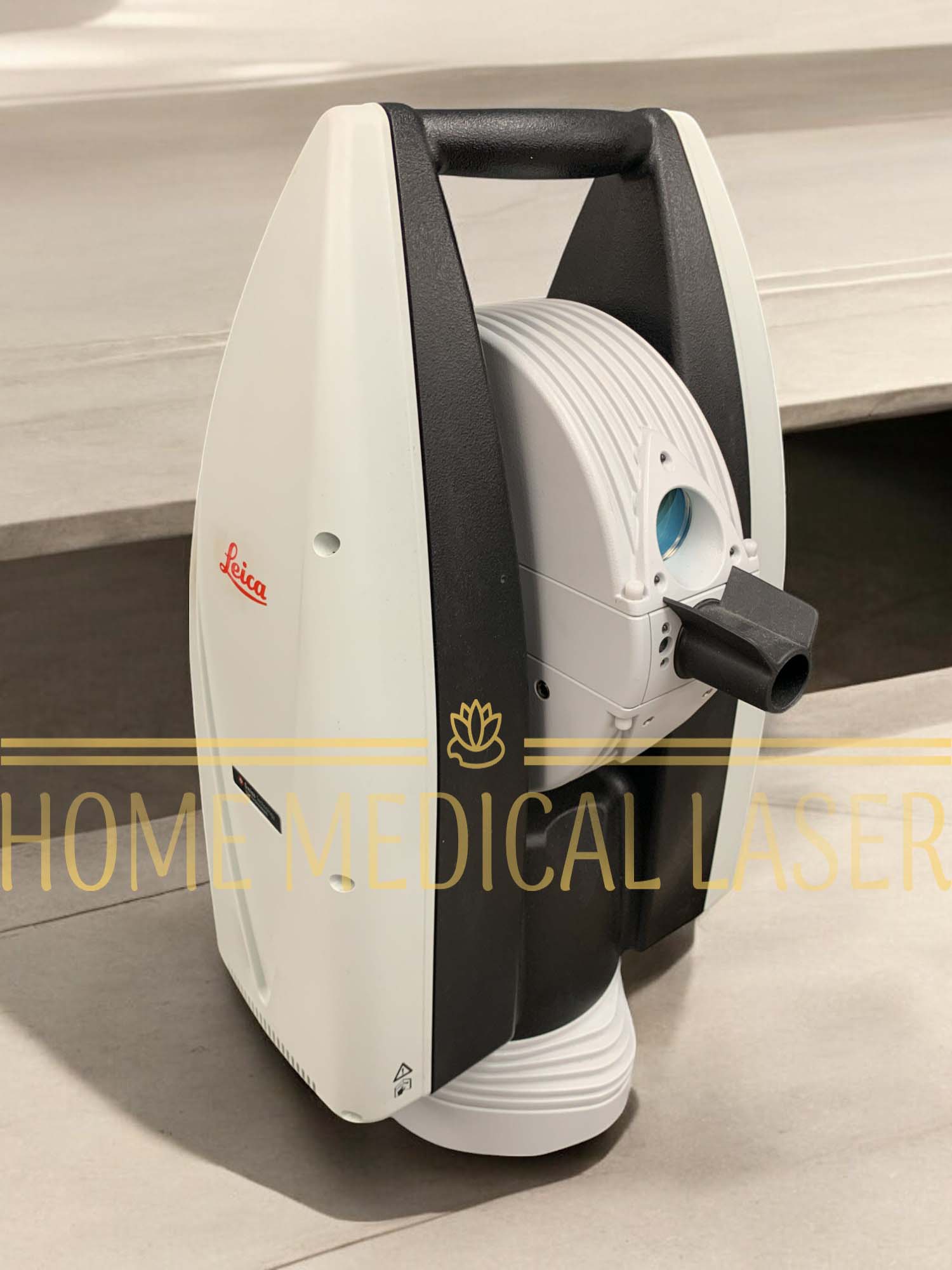

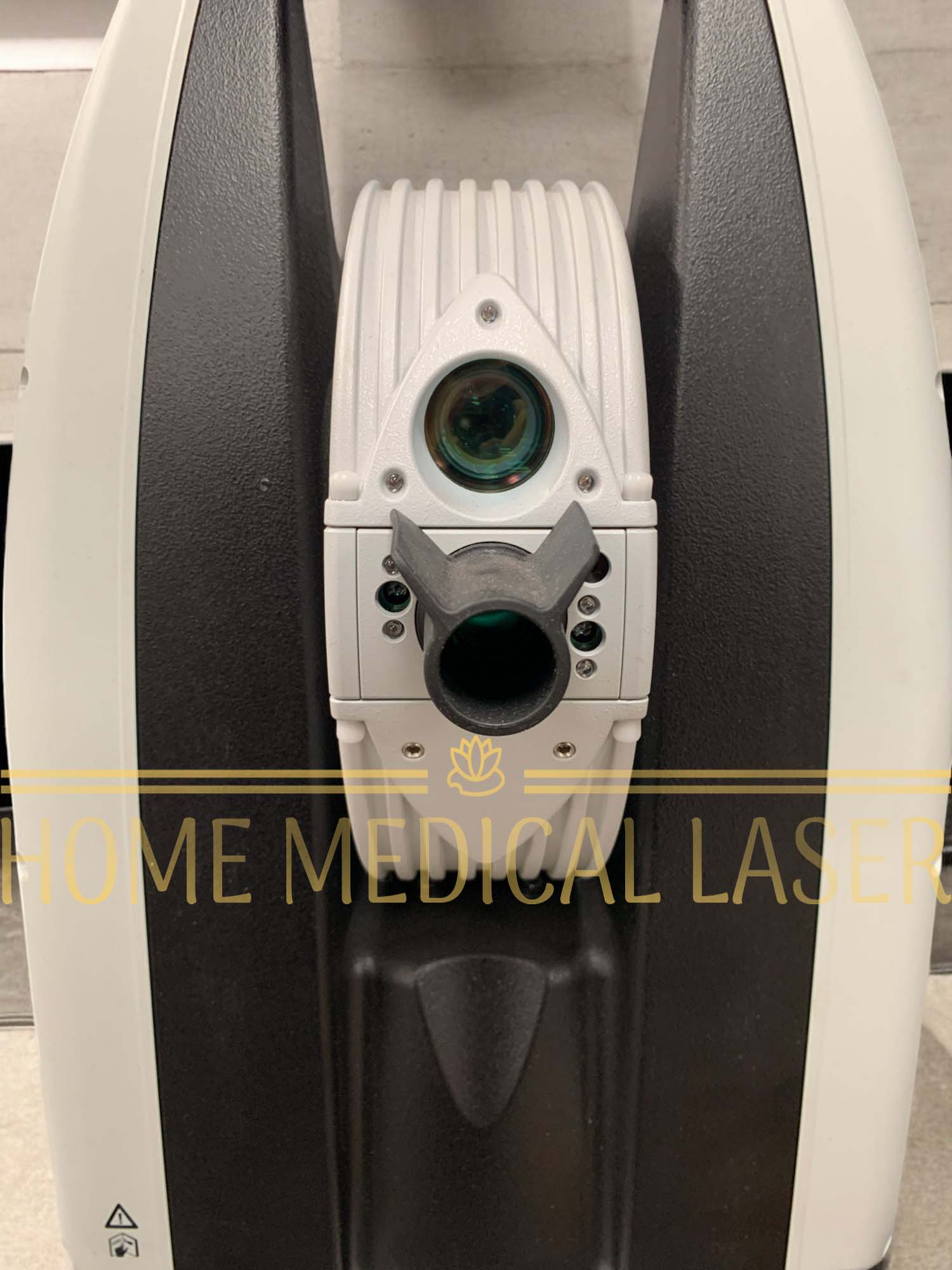

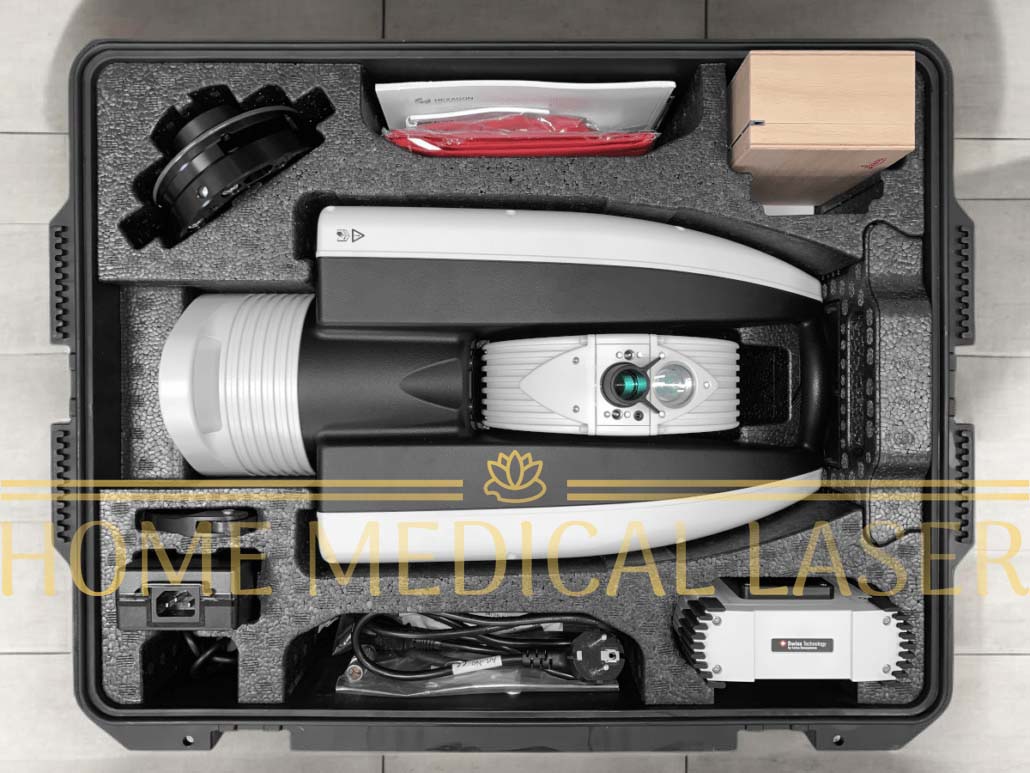

Leica Absolute Tracker AT960 For Sale with a Best Price A new generation of portable CMM system based on proven technology, the AT960 brings together the 6DoF functionality introduced with the Leica Absolute Tracker AT901 and the portability and usability delivered by the compact Leica Absolute Tracker AT403.
The result is a highly-sophisticated yet easy-to-use large-volume measurement solution weighing less than 14 kilograms. Featuring wireless communication and a battery operation option, the integrated-technology design of the AT960 makes lengthy setup a thing of the past.
The Leica Absolute Interferometer (AIFM) enables accurate high-speed measurement to a moving target while the innovative Power Lock function ensures an interrupted beam is instantly re-established without user intervention, reducing operator workload and training requirements. Intuitive touch-screen controls minimise the potential for user error, saving time, effort and money. Check and compensation architecture means basic adjustments can be made in the field, while robust design guarantees on-specification operations with minimal calibration and servicing .
| Accuracy * | Ux,y,z = ±15 μm + 6 μm/m |
|---|---|
| * All accuracies are specified as maximum permissible errors (MPE) and calculated per ASME B89.4.19-2006 & draft ISO10360-10 using precision Leica 1.5” Red Ring Reflectors up to 60 m distance unless otherwise noted. | |
| Angle accuracy | ±15 μm |
| Distance accuracy | ±0.5 μm/m |
| AIFM Dynamic lock on | ±10 μm |
| Oriente to Gravity (OTG) | Uz(OTG) = ±15 μm + 8 μm/m |
| Environmental working conditions | IP54 (IEC 60529) |
| Dust/Water | |
| Operating temperature | 0 ̊C to +40 ̊C |
| Data output rate | 1000 points/sec |
| Laser safety | Class 2 IEC 60825-1 (2014-05) “Safety of laser products” EN 60825-1 (2007-10) “Safety of laser products” |
| Leica T-Probe | Ux,y,z = ±35 μm * |
| *Additional T-Probe uncertainty to be added according to ISO/IEC Guide 98-3:2008 to the existing Leica Absolute Tracker AT960 “Uxyz” uncertainty for a complete “Uxyz” uncertainty up to 25 m distance | |
| Leica T-Scan 5 | Ux,y,z = ±60 μm |
| Leica T-Mac * | |
| Position accuracy | ±15 μm + 6 μm/m |
| Typical rotation accuracy | ±0.01 degree ** |
| Rotation accuracy of timestamp | < 5 microseconds |
