Name: Sparkling Ellman Medley Multi-Platform Device
Brand: Beauty Laser
Availability: InStock

Sparkling Ellman Medley Multi-Platform Device

In stock

New Opto-Electrics Sparkling Ellman Medley Multi-Platform Device;

This is the same device and company that manufactures the Ellman Medley Device, which has been FDA approved since 2011;

Includes 4 Handpieces:

Erbium Yag 2940nm Handpiece for Laser Skin Resurfacing,

Q-Switched Nd Yag 1064nm & 532nm Handpeice for Tattoo Removal, Pigment & Vascular Lesions,

Diode 810nm Handpiece for Hair Removal,

and IPL Handpiece for Skin Rejuvenation with 4 Filters: 650 nm of Hair Removal, 540 nm Filter for Skin Rejuvenation, 510 nm Filter for Vascular & Pigmented Lesions, and 450 nm Filter for Acne;

Includes: 1 Full Day of Training, & 1 Year Manufacturer Warranty

Get an Enquiry

Buy it now

Brands:

Tags: Ellman

Sparkling Ellman Medley Multi-Platform Device

Sparkling Ellman Medley Multi-Platform Device – PRODUCT SPECIFICATIONS

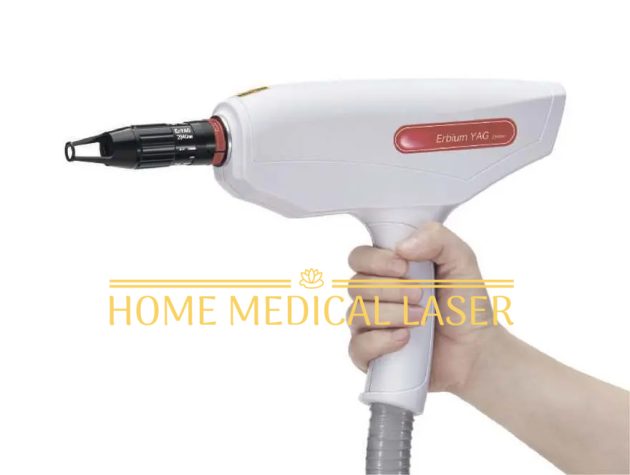

Erbium Yag Handpiece

Application: Laser skin resurfacing, skin ablation and coagulation, wrinkle and scar reduction

Energy: Up to 1000 mJ

Max Power: 2.4 W

Pulse Width: 300 us

Wavelength: 2940 nm

Beam Divergence: Collimated

Spot Size: 1.5 to 6 mm (with zoom lens)

NOHD: >180 m

Repetition Rate: up to 8 pulses per second

Controls: Touch screen LCD, Footswitch

Cooling: Self-Contained Closed Loop

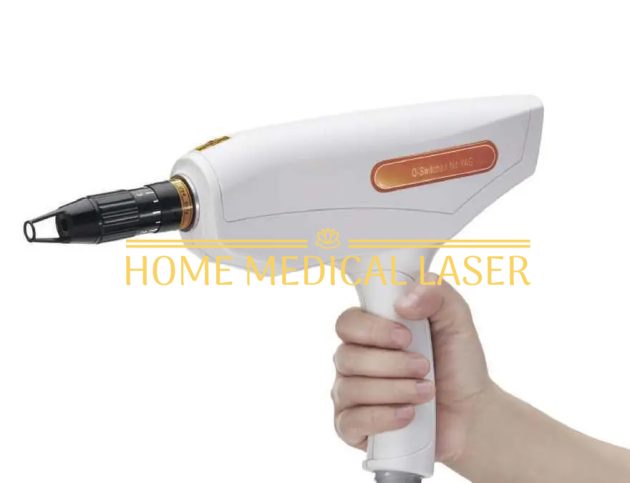

Q-Switched Nd Yag Handpiece

Application: Nd Yag handpiece has two wavelengths of 1064 nm and 532 nm which are used for the treatment of vascular lesions including facial veins, telangiectasias, angiomas, hemangiomas, and pigmented lesions, and tattoo removal.

Energy: Up to 1000 mJ

Maximum Fluence: 12 J/cm2

Wavelength: 1064 nm and 532 nm

Spot Size: 1.5 to 4 mm (with zoom lens)

Pulse Width: 10 to 15 ns

Repetition Rate: 1 to 6 Hz

NOHD: >1000 m

Aiming Beam: Diode (635 nm, 10 mW Max.)

Beam Delivery: Direct

Controls: Touch screen LCD, Footswitch

Cooling: Self-Contained Closed Loop

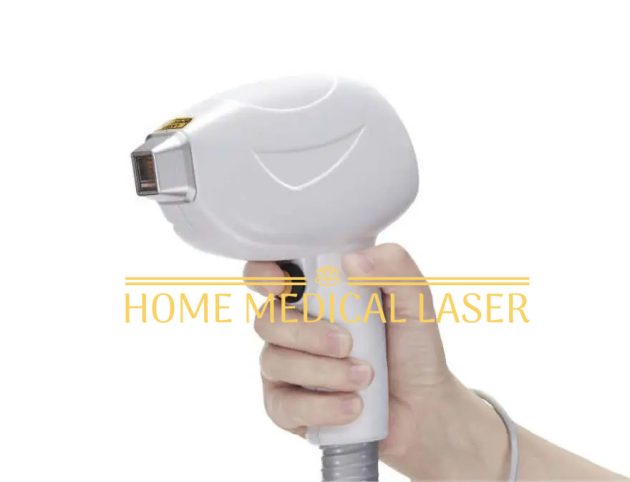

810 nm Diode Laser Handpiece

Application: Laser Hair Removal

Wavelength: 810 nm

Spot Size: 10 x 14 mm

Repetition Rate: 1-10 Hz

Fluence: 1 to 100 J/cm2

NOHD: >30.1 m

Pulse Width:Auto, 30 ms, 100 ms, 200 ms, 400 ms

Accuracy: +- 10%

Cooling Temperature: 0 to 5 C

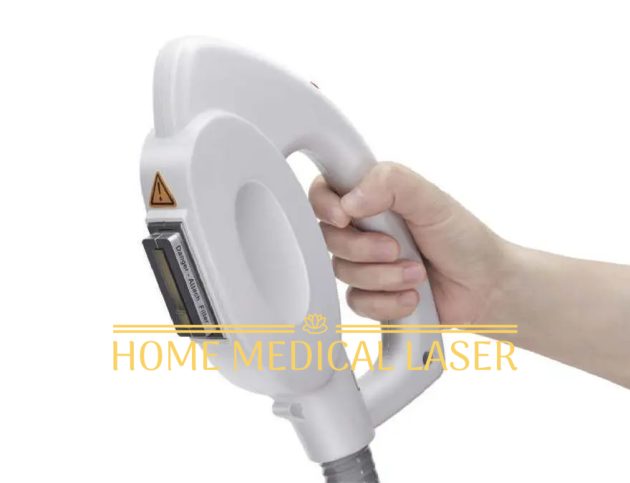

IPL Handpiece

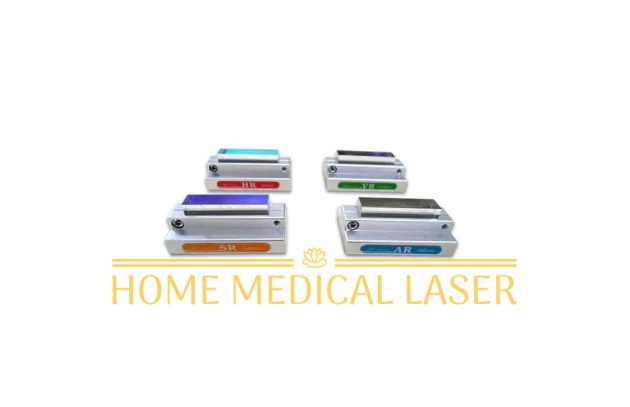

Indicated Uses for 4 Filters:

650 nm (HR) for Hair Removal

540 nm (SR) Filter for Skin Rejuvenation

510 nm (VR) Filter for Vascular & Pigmented Lesions, Melanin, Seborrheic Keratosis, & Photo Damaged Skin Lesions

450 nm (AR) Filter for Acne & Atrophic Acne Scars

Maximum Fluence: 35 J/cm2

Wavelength: 450 to 1200 nm

Spot Size: 35 x 15 mm

Repetition Rate: 1 Pulse every 3 seconds

Cooling: Self-Contained Closed Loop

Indicated Uses:

Tattoo Removal
Pigmented Lesions on Skin Types -IV
Active Acne
Uneven Pigmentation
Vascular Lesions
Hair Removal
Superficial Skin Resurfacing
Fine Lines and Wrinkles
Micro-Laser Peels
Sun Damaged Skin

Sparkling Ellman Medley Multi-Platform Device
