Cynosure Hoya ConBio Revlite – PRODUCT SPECIFICATIONS

System Type: Nd Yag, 532Lite Handpiece & Dye Impregnated Polymers

Wavelengths: 1064nm, 532nm, 585nm, 650nm

System Type – Nd Yag: Wavelength = 1064nm & 532nm; Pulse Width = 5-20 nsec; Maximum Rep Rate = 10 Hz

• 1064nm Maximum Fluence Per Spot Size – 8.5mm = 2.1 J/cm2, 8mm = 2.3 Jcm2, 6mm 4.2 Jcm2, 4mm = 9.4 J/cm2, 3mm = 12 J/cm2, 2mm = 12 J/cm2, 1.5mm = 12 J/cm2, 1.5mm = 12 J/cm2; PTP Mode – 8.5mm = 2.7 J/cm2, 6mm = 5.5 J/cm2
• 532nm Maximum Fluence Per Spot Size – 6mm = 1.5 J/cm2, 4mm = 3.4J/cm2, 3mm = 5 J/cm2, 2mm = 5 J/cm2, 1.5mm = 5 J/cm2, 1.2mm = 5 J/cm2; PTP Mode – 6mm = 1.6 J/cm2

System Type – 532 Lite Handpiece:Wavelength = 532nm; Pulse Width = 5-20 nsec; Maximum Rep Rate = 10 Hz

• 532nm Maximum Fluence Per Spot Size – 3mm = 0.4 J/cm2, 2mm = .08 J/cm2, 1.5mm = 1.4 J/cm2, 1.2mm = 2.3 J/cm2

System Type – Dye Impregnated Polymers: Wavelength = 585nm & 650nm; Pulse Width = less than 7 nsec

• 585nm Maximum Fluence per Spot Size – 2mm = 8.2 J/cm2; Maximum Rep Rate = 2 Hz
• 650nm Maximum Fluence per Spot Size – 2 mm = 5.5 J/cm2; Maximum Rep Rate = 1 Hz

Aiming Beam: Red, Variable Intensity

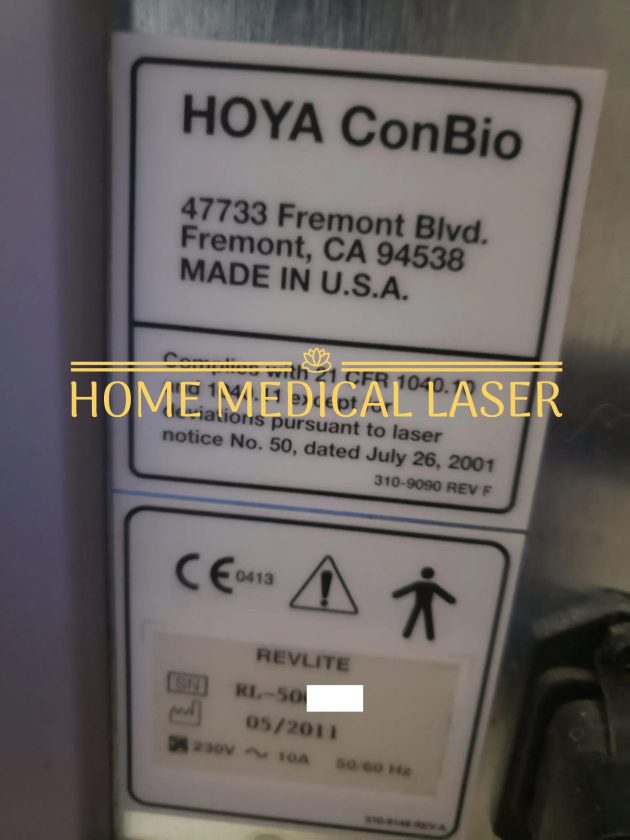

Electrical Requirements:220 V, Single Phase, 8 Amp, 50/60Hz, 10 Amps at 220 V AC

Size (H x W x D):113 cm x 30.5 cm x 72.5 cm

Weight:59.4 kg

Revlite MANUFACTURER NOTES

Built on ConBios original Q-Switched laser technology, RevLite SI is a new-generation Q-Switched Nd:YAG laser, currently available in the US and Canada. Its multi-wavelength system provides greater efficacy, comfort and power.

Maximum Power and Versatility

Delivering 1064 nm and 532 nm, with MultiLite Dye Handpieces extending the wavelength capabilities to include 585 nm and 650 nm, RevLite SI provides the versatility you need to target the full color spectrum of tattoo inks. It also allows you to perform:

• target the full color spectrum of tattoo inks
• non-ablative skin resurfacing
• wrinkle reduction
• acne scar reduction
• dermal and epidermal pigmented lesions, including melasma
• vascular lesion removal

RevLiteSIs advanced technology features include:

• SmartInfiniteTM (SI) Handpiece

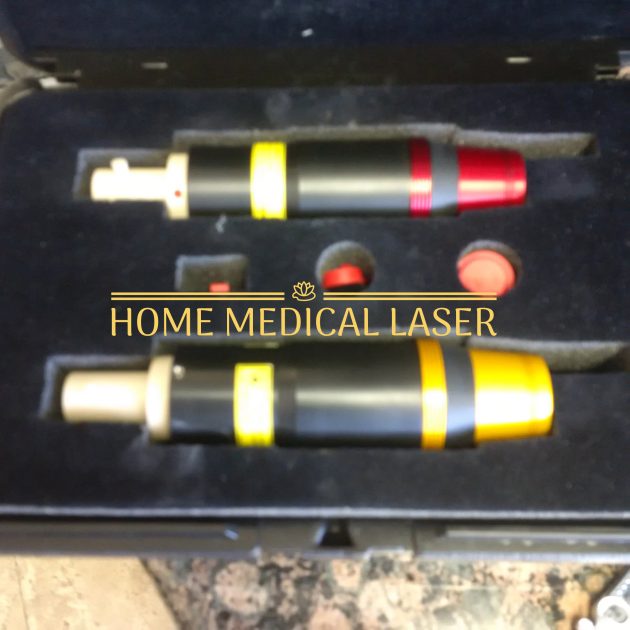

• MultiLite Dye Handpieces (585 nm and 650 nm)
• 532Lite Handpiece
• PhotoAcoustic Technology Pulse (PTP)
• Precision Beam Technology
