FineMEC co Nobleen Dual Long Pulsed Laser

FineMEC co Nobleen Dual Long Pulsed Laser

FineMEC co Nobleen Dual Long Pulsed Laser – THE NEW NOBLEEN – AN ALL NEW EXPERIENCE

Delivering a cutting-edge treatment experience, intuitive technology and ambitious design, the Nobleen has been lauded as everything a Nd:YAG and Alexandrite laser should be—and so much more.

FineMEC one of the first Korean manufacturers to develop a long-pulsed Nd:YAG laser and a long-pulsed Alexandrite laser.

Nobleen, a dual-wavelength platform is a powerful combination of 2 best seller devices Aileen(long pulsed Nd:YAG laser) and Noblex(long pulsed Alexandrite laser) which have been introduced to the market since 2006.

From hair removal to vascular lesions, Nobleen is an advanced multi-treatment dual wavelength platform for professionals.

The “Noble Fractional Technology” is an innovative solution that provides the most advanced treatment for melasma and pigment lesions.

The innovative “Fine Square Shape Beam Technology” by FineMEC offers an outstanding square shape spot size of 20x20mm.

Hair Removal, Skin Rejuvenation, Benign Pigmented Lesions, Vascular Lesions

Dual Wavelengths Platform Covering a Wide Range of Indications

Advanced Pigment Treatment with Patented 755nm Fractional Handpiece (Optional)

Various Spot Sizes (2mm Up to a Maximum of 20mm)

Strong RCS Cooling System for Minimum Downtime

Air Cooling System Attachable (Optional)

Includes

System

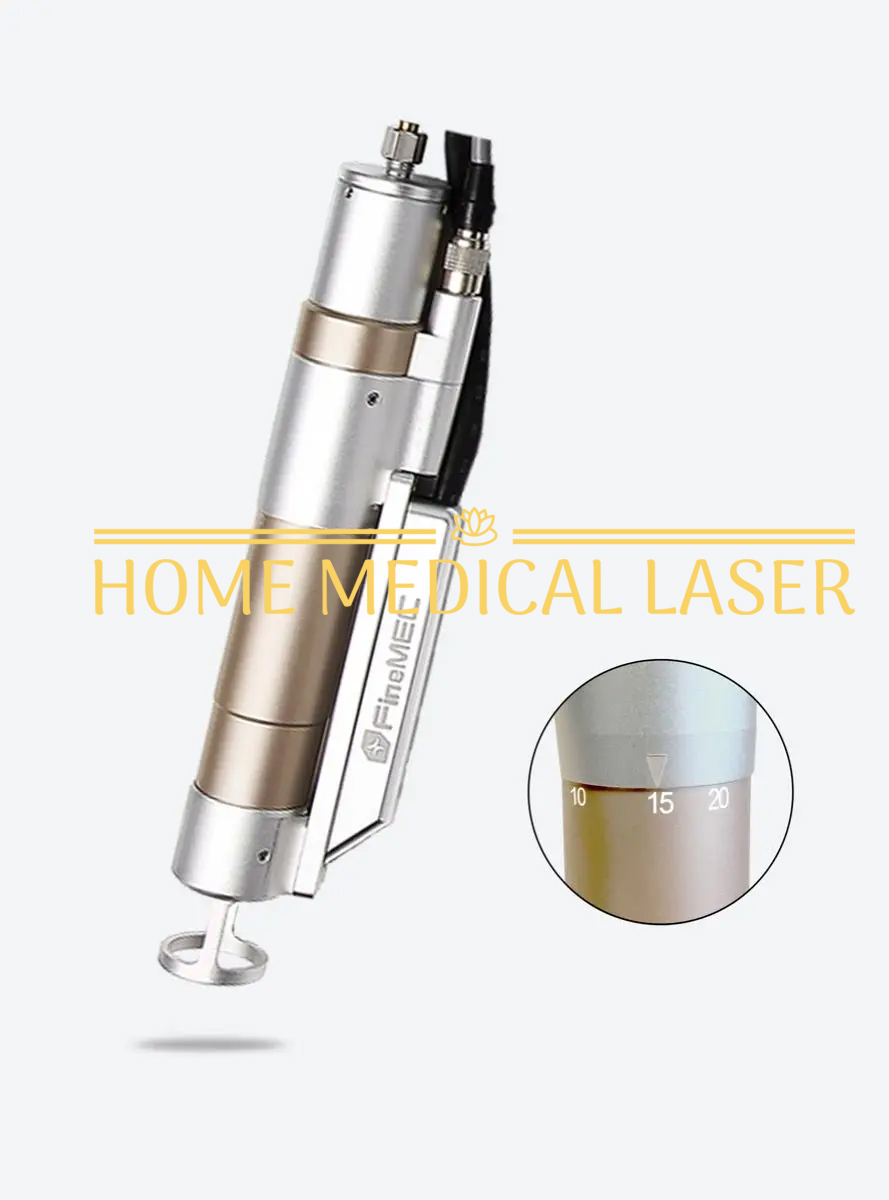

Main handpiece (2~20mm)Key
Power Cable
Foot Switch
Interlock
Operator Glasses
Patient Eye Shield
User’s Manual
1-Year Warranty

Technical Data
Alexandrite Nd:YAG
Wavelength 755nm 1064nm
Repetition 1~20Hz
Output Energy Up to 80J Up to100J
Pulse Width 0.08~100ms 0.08~300ms
Spot Size 2mm, 3mm, 5mm, 7mm, 10mm, 15mm, 20mm
Fluence – 2mm 1 to 600 J/㎠ 1 to 400 J/㎠
Fluence – 3mm 1 to 600 J/㎠ 1 to 400 J/㎠
Fluence – 5mm 1 to 200 J/㎠ 1 to 200 J/㎠
Fluence – 7mm 1 to 150 J/㎠ 1 to 150 J/㎠
Fluence – 10mm 1 to 70 J/㎠ 1 to 100 J/㎠
Fluence – 15mm 1 to 31 J/㎠ 1 to 45 J/㎠
Fluence – 20mm 1 to 18 J/㎠ 1 to 25 J/㎠
Fractional Handpiece 15mm Spot size
(130 dots, 400㎛ dot size)
Beam Delivery Lens coupled optical fiber with handpiece
Aiming Beam 22mW laser diode (350nm)
Control Panel Touch screen input interface
Pulse Control Foot switch
Skin cooling System Selective RCS gas cooling / Air cooling(external)
Duration of Cooling Spray 5~20ms(Pre/Post)
Electrical Requirements AC 220V 30A (60Hz, single phase), Power consumption 6.6KVA
Dimensions 880(H) × 385(W) × 950(L)
Weight 85Kg
