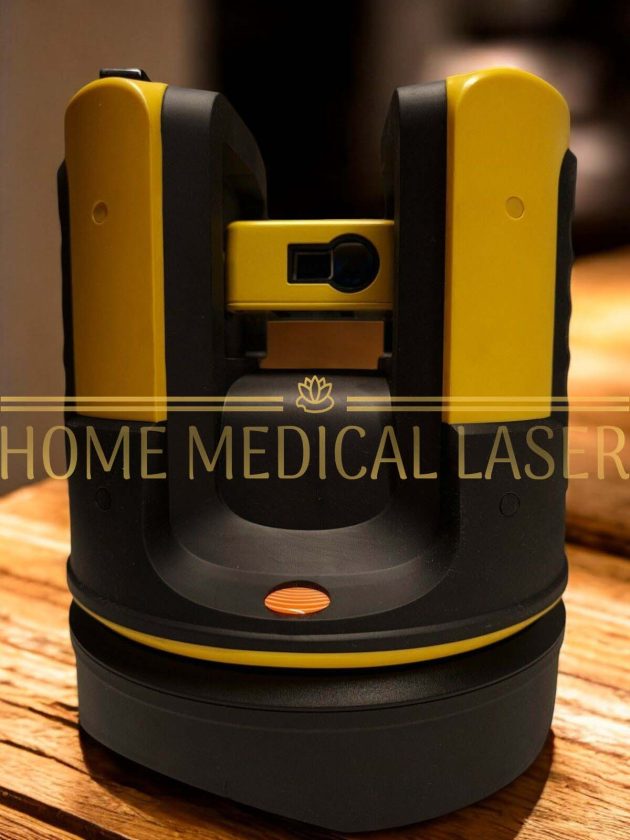

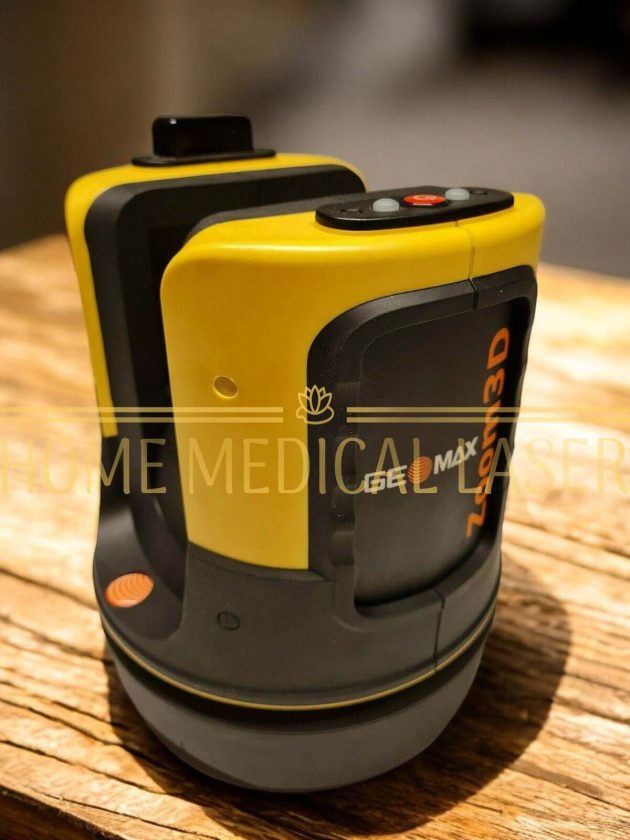

GeoMax Zoom3D Robotic Laser Scanner System

GeoMax Zoom3D Robotic Laser Scanner System is the perfect partner for tasks that need indoor use. Points and staking out are just a couple of the features that make Zoom3D, a unique and intuitive onboard program, so quick and easy to use. The most widely used data formats make it simple to export data and produce fast, precise results.

PLUG AND PLAY SOLUTION

Simple configuration
Auto levelling feature
Powerful 7“ Windows tablet

MICRO ROBOTIC SYSTEM

Target recognition technology
Auto targeting and tracking functions
Ideal for small construction sites

YOUR INDOOR PARTNER

Highly accurate 3D measurements
User friendly onboard software
Full set of applications and easy data Export

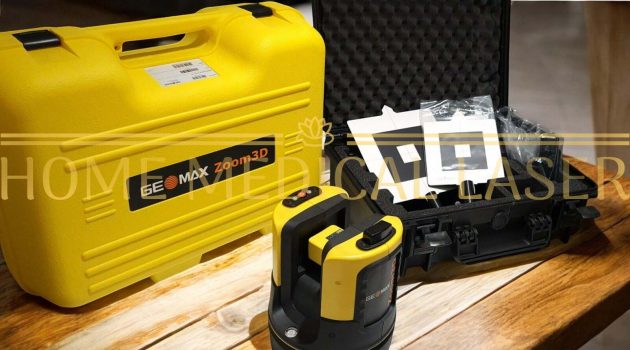

GeoMax Zoom3D Robotic Laser Scanner Package included :

• 1 Zoom3D Measuring System
• 1 Carry case
• 1 Control unit
• 1 Power supply
• 2 USB cables
• 1 Power cable
• 1 RM100 Remote Control
• 1 USB Stick
• 1 Extra Wi-Fi USB stick
• 1 Data CD
• 1 Safety Manual
• 1 Quick Start
• CE + Producer Certificate
• 1 X-PAD 3D Base
• 1 X-PAD 3D “Robotic module” (option)
• 1 Target kit and holder for tablet (option)
• 1 ZPT101 telescopic pole with stub for TPS (option)

Specification :

• Goniometer
• Measurement range: Horizontal 360°; vertical 250°
• Accuracy: 5˝, equates to 1.2 mm @ 50 m
• Laser Distance Metre
• Type: Coaxial, visible red laser
• quick connect
• Measurement: range 0.5 – 50 m
• Laser class: 2
• Laser type: 650 nm; < 1mW
• ø laser dot (at distance): 10 m: -7 mm x 7 mm 30 m: ~9 mm x 15 mm
• Tie Distance Accuracy (3D)
• Angle and distance combination: @10 m @30 m @50 m Approx. 1mm 2mm 4mm
• Accuracy: 5˝, equates to 1.2 mm @ 50 m
• Tilt sensor
• Self-levelling range: ±3°
• Accuracy: 10˝, equates to 2.5 mm @ 50 m
• Operation
• Keys/user interface: 1 on / off button
• Interfaces: USB type B, power supply power pack
• Digital Point Finder
• Zoom (magnification)/ Field of view (@10m): 1× / 3.40m × 2.14m 2× / 1.70 m × 1.07 m 4× / 0.85 m × 0.54 m 8× / 0.42 m × 0.27 m
• Circular Level Setting
• Accuracy: 1°/mm
• Communication
• Cable: USB: Micro-B USB and type a; WLAN
• Wireless: 50 m range **
• Power Supply
• Internal battery: Li-Ion battery 14.4 V / 63 Wh
• External power: 24 VDC / 2.5A, charging time 8h
• Operating time: 8h
• Physical Specifications
• Dimensions: Hei:ght 215.5 mm ø 186.6 mm
• Weight: 2.8 kg
• Operating temp.: –10°C to 50°C
• Storage temp.: –25°C to 70°C
• Protection class: IP54 (IEC 60529)
• Attachment: 5 ⁄ 8” thread
• Remote Control
• Range: 50 m **
• Communication: Infrared (IR)
• Battery: 1 AA. 1.5 V
