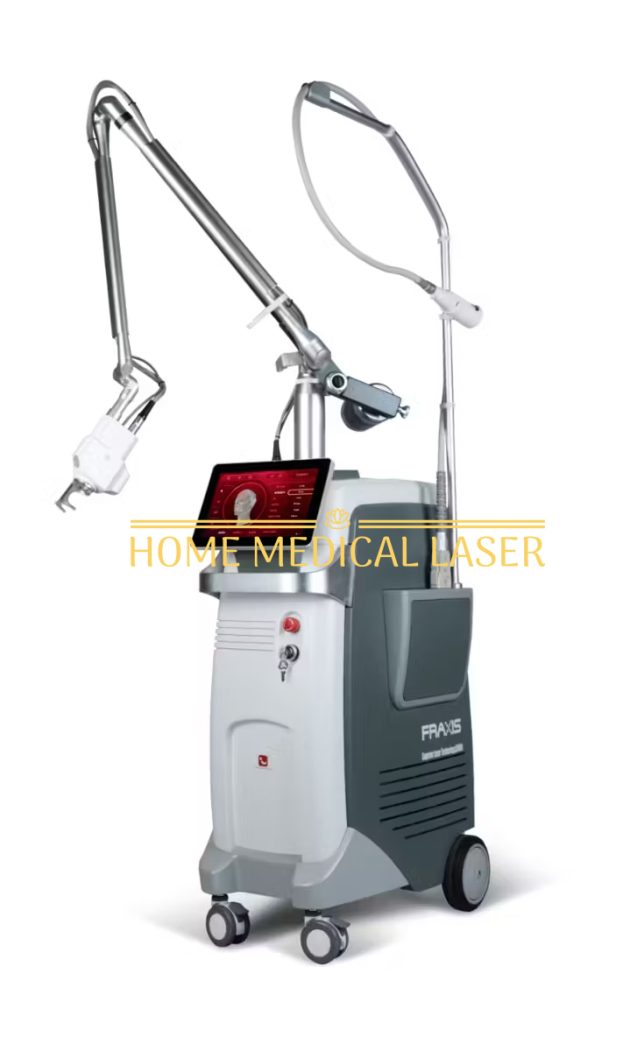

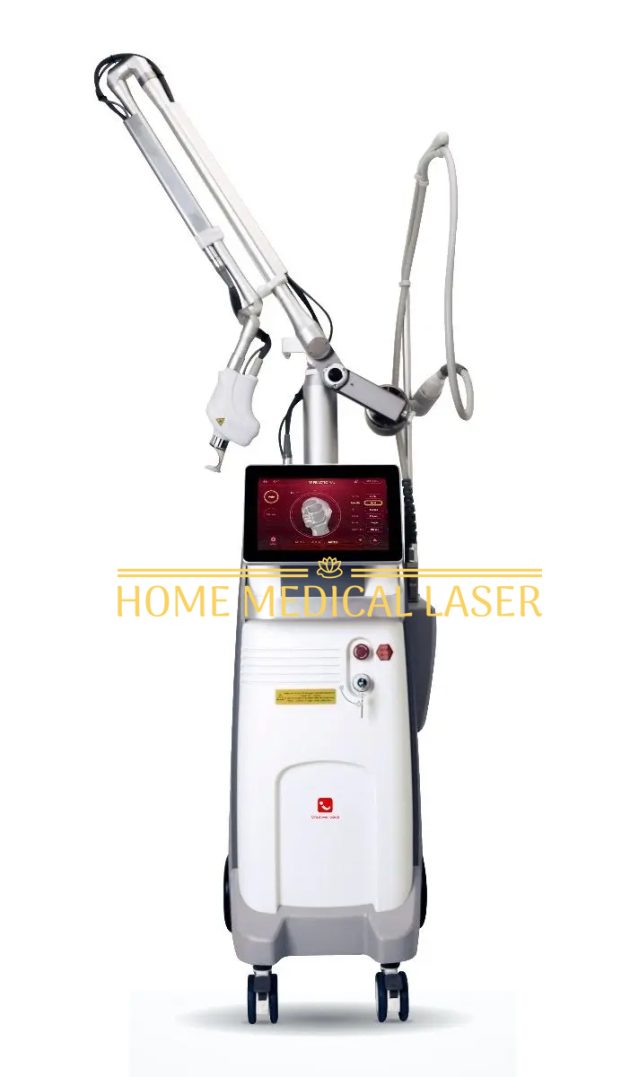

Ilooda FRAXIS DUO High Power CO2 Fractional Laser Plus RF Micro-Needling
Ilooda FRAXIS DUO High Power CO2 – THE FIRST MULTI-APPLICATION WORKSTATION
The ideal combination of CO² laser and micro-needle fractional RF technology makes FRAXIS DUO perfect for multi-application opportunities to treat a larger range of aesthetics treatment of face and body increasing the effectiveness of the treatment and reducing side effects. It is also easily upgradeable for a wide range of clinical indications with its optional surgical applicators.
Turn back the time with Fraxis DUO.
Key Features
- SmartSurgi™. Adjustable multiple spot sizes
- Multiple applications, combination therapy
- Delivers 120 micron beams that provide faster healing
- Safe for all skin types
Includes
- System

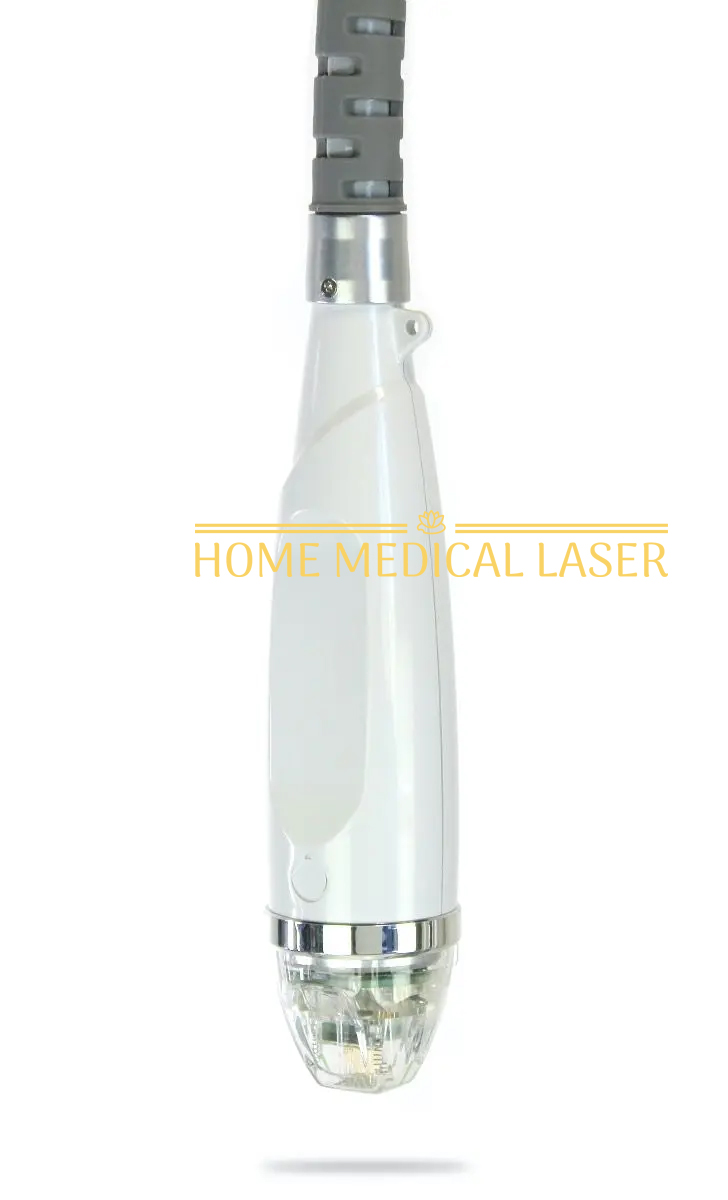

- 1 Standard RF Micro-Needling Handpiece

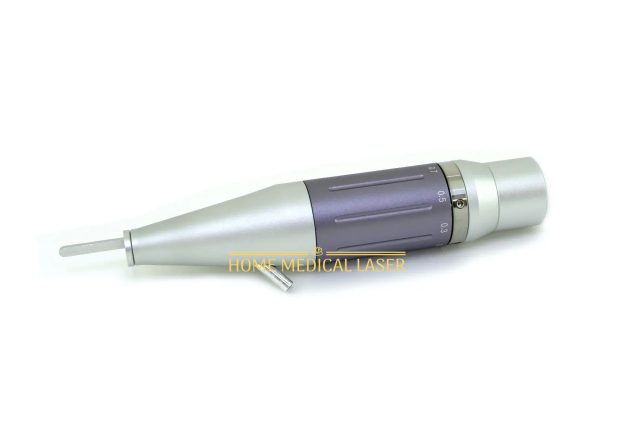

- 1 SmartSurgi™ Handpiece
- 1 Co2 Scanning Laser Handpiece
- Handpiece Holder
- Mast Cable Holder

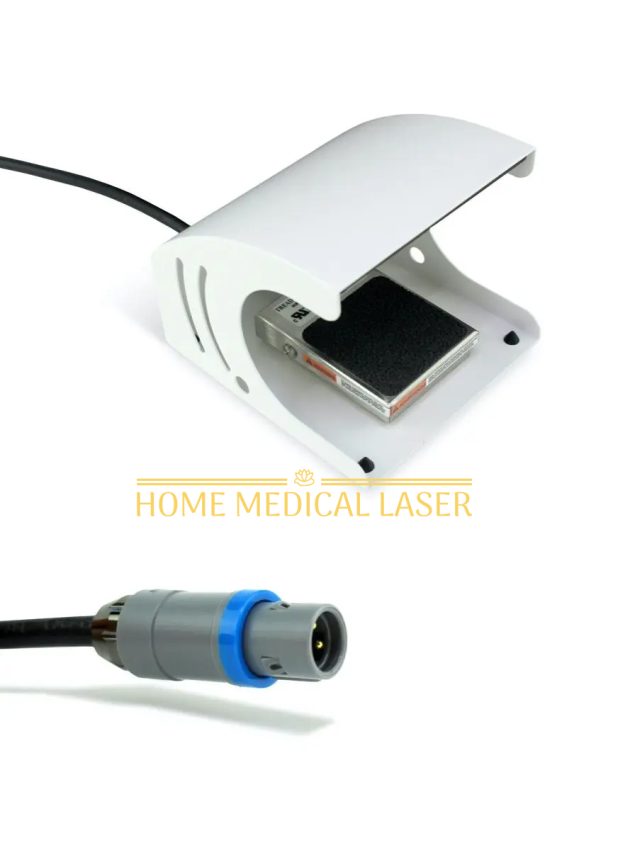

- Foot Switch
- Power Cable

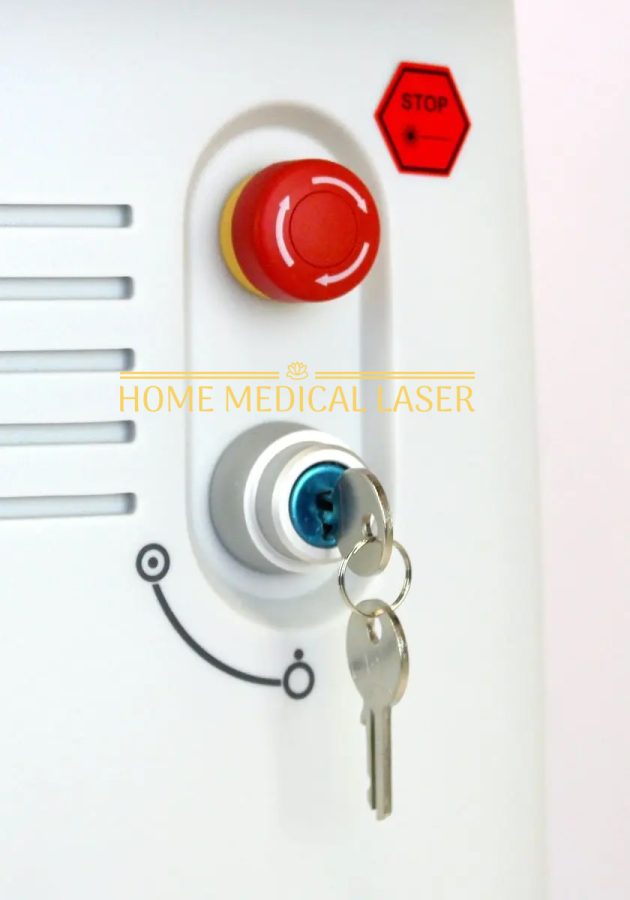

- Key Switch

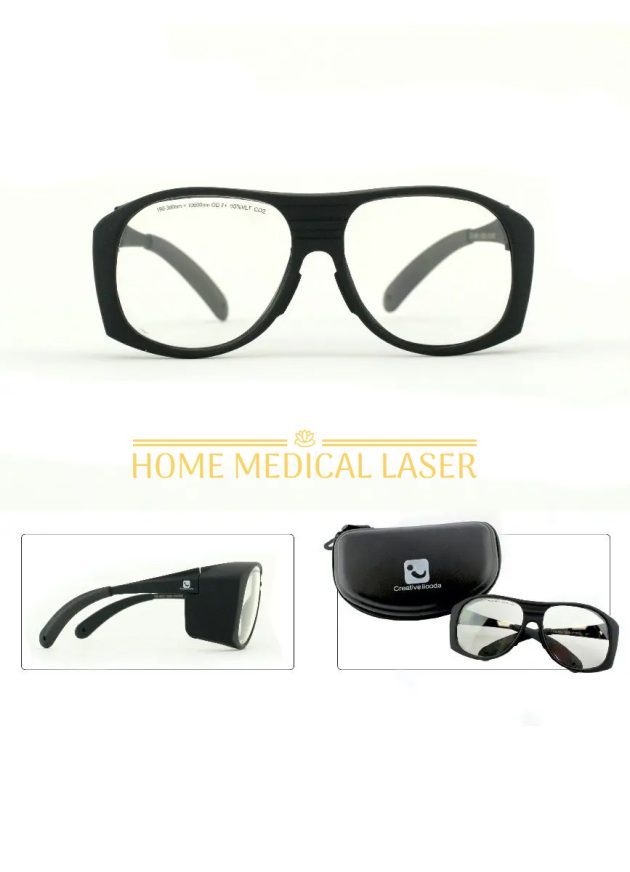

- Operator Goggles
- Patient Eye Shields
- Remote Interlock Connector
- User’s Manual
- Clinical Guide
- Virtual Operator Training
- 1-Year Warranty
Technical Data
CO2 Laser System (Fractional)
- Wave Length: 10,600nm (TEMOO)
- Laser Power: Up to 30W (Up to 150mJ)
- Pulse Duration: 20-5,000μs
- Overlap: 1 – 10th
- Pixel Size: <100 micron
- Distance: 0.1 – 2.0mm
- Treatment Area: 10mm x 10mm – 20mm x 20mm
- Pixel Quantity: 40 to 401
- Repetition: 0.2 – 2 sec / single
- SmartSurgi Handpiece: 0.2, 0.3, 0.5, 0.7, 0.9, 1.1 and 1.3mm
RF Microneedle System (Fractional)
- RF Frequency: 2MHz ± 10%
- RF Power: Up to 50W ± 10%
- Treatment Duration (RF Emission): 50ms – 950ms
- Intensity: 0 – 100 Level (10 steps)
- Needle Diameter: 0.25mm
- Needle Confirgurations: 25 electrode needle (5×5) / 10 electrode needle (1×10)(Option)
- Treatment Area: 25= 7.8 x 7.8mm / 10= 0.25 x 16mm
- Adjustable Depth: 0.5 – 3.5mm (0.1mm steps)
- Repetition: 0.2, 0.5, 0.1, 1.0, 2.0 seconds/ single

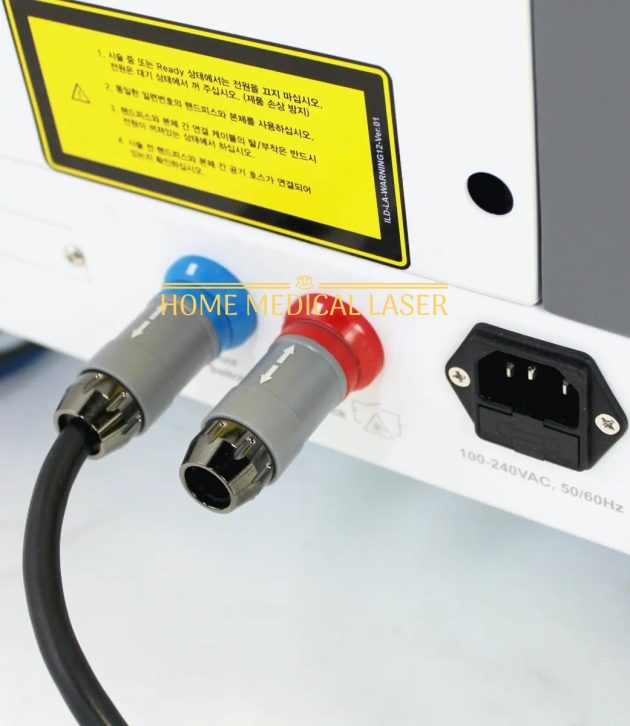

Electrical Requirements: 110~240VAC, 50Hz or 60Hz

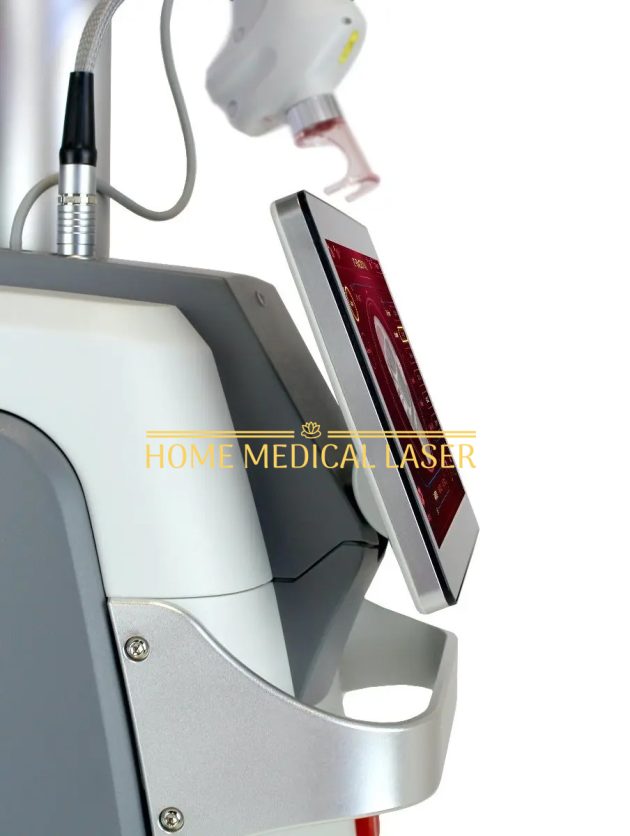

Screen: 12″ touch screen
Dimensions (LxWxH): 880mm x 530mm x 400mm
Weight: 106 Lb
Ilooda FRAXIS DUO High Power CO2
