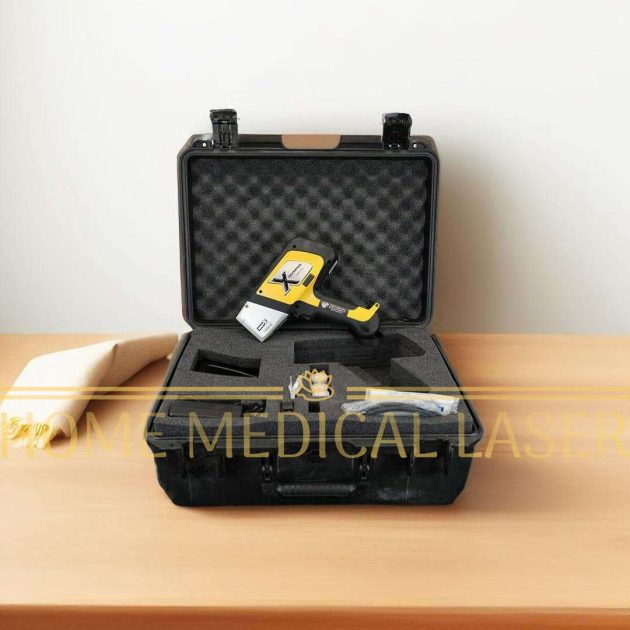

Olympus DS-6500 Delta Standard Alloy XRF Analyzer manual For Sale with a Best Price Generally known as an XRF analyzer, the Delta is a portable energy dispersive X-ray fluorescence spectrometer. A full Delta package includes: handheld analyzer with a single, ergonomically built body that is sealed around a collection of instrument components. Among them are: In charge Interactive color touchscreen (ergonomically mounted) Navigation keys on membranes Selecting PiN or SDD detectors to achieve a variety of application objectives .
Olympus DS-6500 Delta Standard Alloy XRF Analyzer
The instrument’s primary feature, which is Innov-X’s exclusive control, data gathering, and analysis software with customer-configured choices, is complemented by these strong qualities.
Depending on the model chosen, the enlarged Delta series of handheld XRF devices provides quick and accurate identification and analysis for elements ranging from magnesium to uranium (Mg to U). Users are able to perform a variety of analysis tests in harsh operating conditions thanks to an integrated heat sink and a weatherproof and dustproof extremely tough design. The simplicity of “Hot Swapping” batteries is an added feature for field use.
Applications
The analyzer gives accurate chemical analysis for commercial or industrial areas, such as:
- Positive Material Identification
- Mining and Exploration
- Consumer Safety
- Scrap Processing
- Environmental Testing
- Light Element & Aluminum Analysis
Specifications:
| Handheld Analyzer | |
| Weight | 3.35 lbs. (Base wt.), 3.70 lbs. (1.6 kg) with battery |
| Excitation Source | 4 Watt X-ray tube – Au, Ag, Rh, or Ta anode (application optimized), 8-40 keV, 5 – 200 µA, eight filter positions |
| Detector | Various: Si PIN diode or Si Drift detector, thermo-electrically cooled, high resolution |
| Power | Removable Li-ion batteries, or AC power unit |
| Battery Life | Battery life varies depending on usage patterns |
| Display | Color “transflective” touchscreen (800 x 600) with 16-bit LCD interface) |
| Cal Check Coupon | 316 Stainless Steel Alloy — see also Docking Station |
| Power Requirements for AC Adapter | 110-220 VAC, 50-60 Hz, 600 W max (P/N 100043) |
| Pressure Correction | Built-in barometer for automatic altitude correction |
| Operating Environment | Temperature: -10°C to 45°C Humidity: 10 to 90% Relative Humidity, non-condensing Altitude Rating: 2000 meters |
| Operating System | Windows Embedded CE® |
| Application Software | Innov-X Systems’ proprietary Data Acquisition and Processing package |
| USB Interface | USB 2.0 |
| Docking Station | |
| Dimensions | L=14.0 in x W=8.75 in x H=4.75 in (H w/ spare battery = 6.5 in); Wt = 3.25 lbs. |
| Power Requirement | AC adapter standard: 110-220 VAC, 50-60 Hz, 600 W max |
| Cal Check Cup | Automatically performs Cal Check on inserted instrument |
| Battery Charging | Charges battery in unit; can simultaneously charge spare battery in separate socket |
