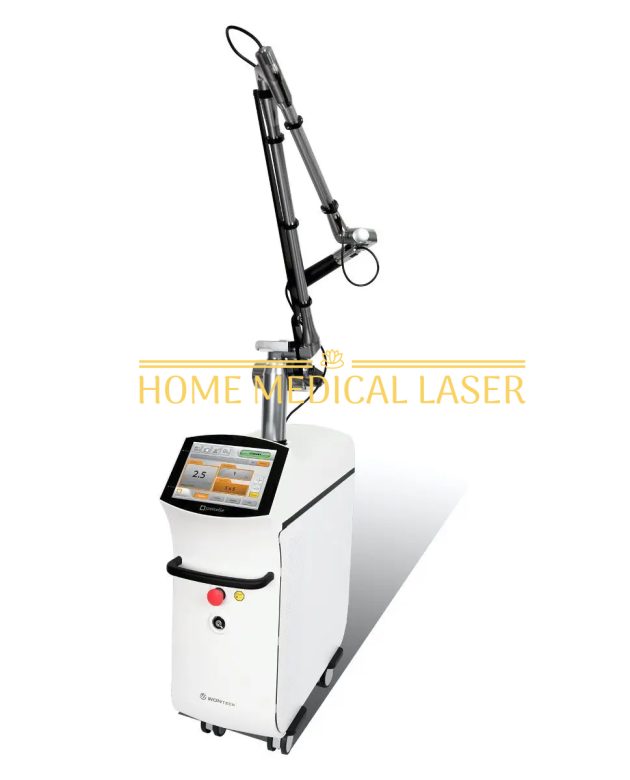

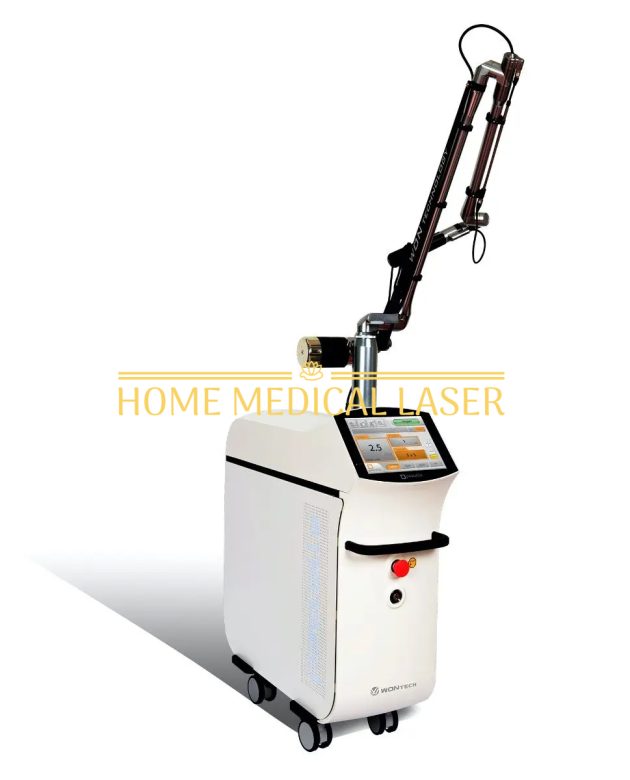

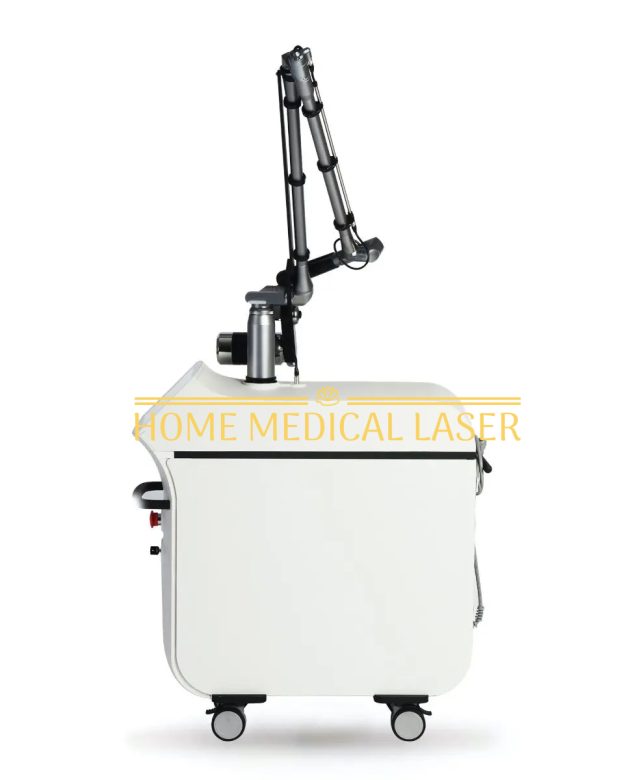

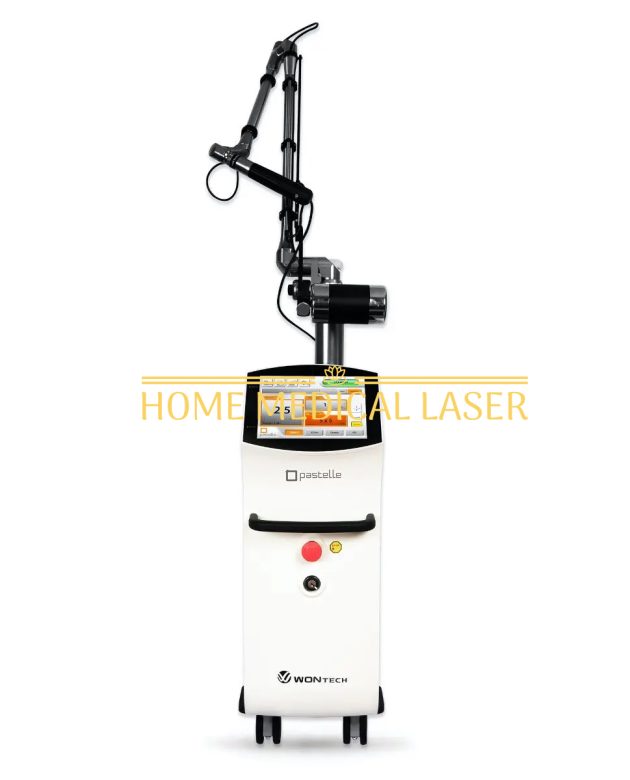

WONTECH Pastelle Q-Switched & Nd:YAG Laser

Pastelle, FDA approved, is a premium Q-switched Nd:YAG Laser that provides high power output during all the pigment procedures.
Consistent output on a large targeted area with uniform energy distribution allows safe and effective treatment, minimizing skin thermal injury and selectively destroying pigments present throughout the dermis.
Also, PTP mode presents less pain and faster regeneration, compared to the single pulse.

Key Features

• Highly effective in treatments of dermal/epidermal lesions, tattoo removal, and skin pigmentation
• Genesis Mode for the skin rejuvenation effect by collagen stimulation and skin tightening
• PTP Mode (Photoacoustic Twin Pulse) for mild treatments of pigmentation with less pain and less tissue damage
• Dual toning technique using both Genesis mode and 1064nm mode
• Various kinds of handpieces (Zoom/Fractional/Dye) for more specific and effective treatments

Includes

• System
• Zoom Handpiece
• Collimation Handpiece
• DYE Handpiece
• Power Cable
• User’s Manual
• 1-Year Warranty

Technical Data

• System Type: Q-Switched Nd:YAG Laser
• Wavelength: 532nm & 1064nm
• Output: 532nm: 500mJ, 1064nm: 1,300mJ, PTP Mode: 1,600mJ, Genesis Mode: 3,500mJ
• Pulse Duration: 4 to 48ns (Q-Switched mode), 80 to 480㎲ (Genesis Mode)
• Repetition Rate: Up to 10Hz
• Spot Size: 2 to 10mn
• Electrical Requirements: 220 VAC, 60Hz, 50kVA
• Dimensions (LxWxH): 805mm x 400mm x 871mm
• Weight: 132 Lb
