PRUFTECHNIK VIBXPERT II Vibration Analyzer For Sale with a Best Price is the portable power pack for capturing and analyzing machine condition data quickly and accurately. The color display displays the current machine status data after a very little measuring period. On-site data analysis is possible by the maintenance specialist. All values from the various characteristic value modes that are crucial for a precise machine condition analysis can be read from the recorded machine condition data.
The gadget is utilized directly at the machine, for example, from a bucket excavator to a hydroelectric turbine, or from the machine hall to an oil tanker’s diesel generator. Both sophisticated and quick interventions are made possible by the strong design. Whether in tough industrial conditions or in systems that are clinically clean. In terms of mobile machine and plant condition monitoring, VIBXPERT II is the industry standard.
The VIBXPERT II is a rapid, dependable, and highly effective data analysis tool that may also be utilized for operational balancing. As a result, the VIBXPERT II is the most potent and successful mobile condition monitoring tool available. The analysis program OMNITREND Center from PRUFTECHNIK can be used with VIBXPERT II to provide extremely accurate and efficient results. Center analysis software, which makes analysis results extremely accurate and efficient.

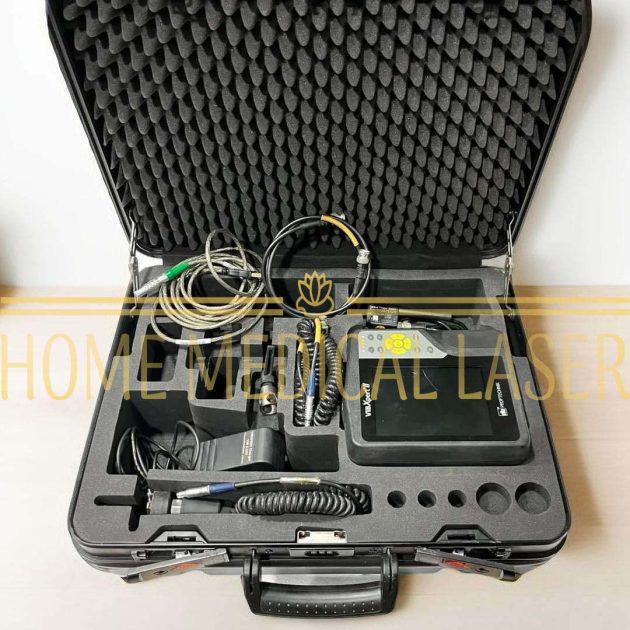

PRUFTECHNIK VIBXPERT II Vibration Analyzer Included:
– 1 x PRUFTECHNIK VIBXPERT II device as new
– NEW VIB 6.142R sensor + magnetic adapter
– NEW charger with adapters for all countries
– NEW USB cable to connect to a pc
– NEW VIB 5.436 spiral lead to connect to sensor
– NEW 2GB sd memory card
– Certifications,
– Omnitrend software
– protective carrying bag + shoulder strap

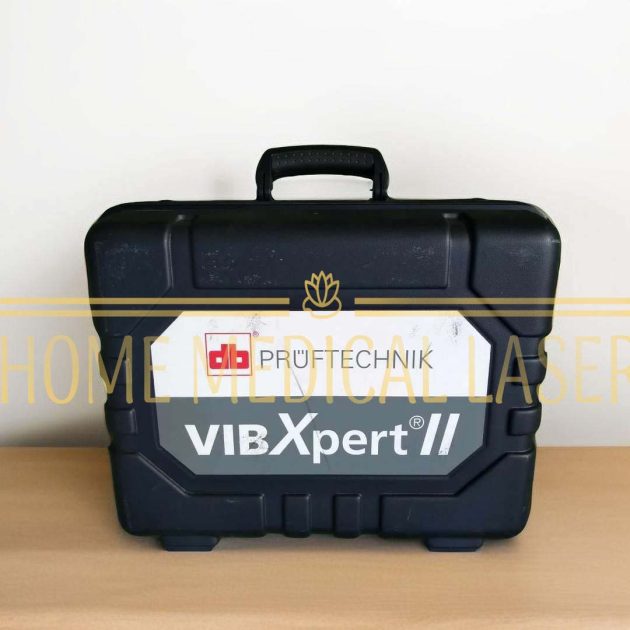

– Hard 2 wheels case with extendable handle(foamed)
Portable all-in-one system for effective vibration monitoring
- – Route-based data collection
- – Vibration analysis
- – One and two plane field balancing
- – Acceptance measurements with machine templates
- – Troubleshooting
- – Multimeter
- – Data logging
- – Visual inspection
- Specifications:
Hardware
Measurement channel, analog : Z-channel (0 … 50kHz): -20 … +20V / IEPE / Linedrive
X/Y-channel (0 … 10kHz): -20 … +20V / IEPE
Dynamic range : 109.5 dB (total)
Sampling rate : up to 131 kHz per channel
Signal processing : 3 x 24 bit ADCs
Display type : Capacitive touchscreen
Display size : 10.9 cm (4 1/3″)
Color depth : 16 million colors
Operation : Multi touch – gesture control
Rechargeable battery : Li-ion / 7.2 V / 72 Wh
Interfaces, sensors : USB 2.0 / RFID / stroboscope
Degree of protection : IP65, dust-proof and water jet-proofMeasurement functions
Overall values : Vibration (a/v/s), voltage, roller bearing
Signals Trending : spectrum, trending envelope spectrum, both with time signal, amplitude spectrum and various trending parameters (overall values)
Process parameter, visual inspection : Manual input
RPM : RPM determination through vibration signal, verification with stroboscope possible
