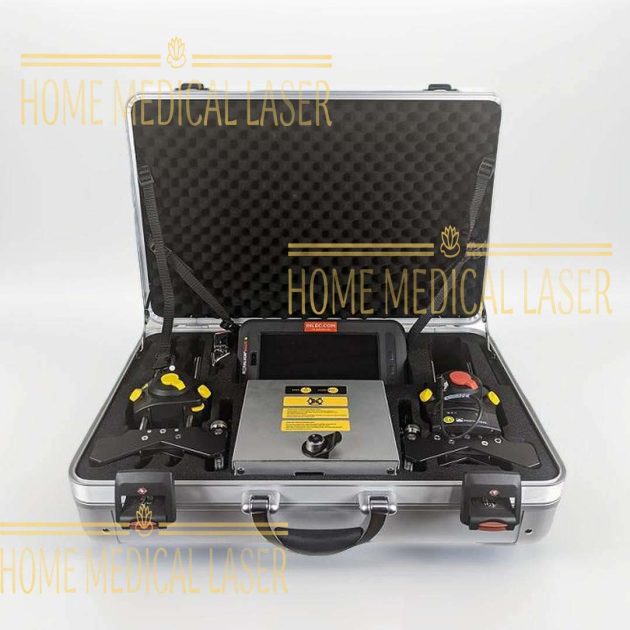

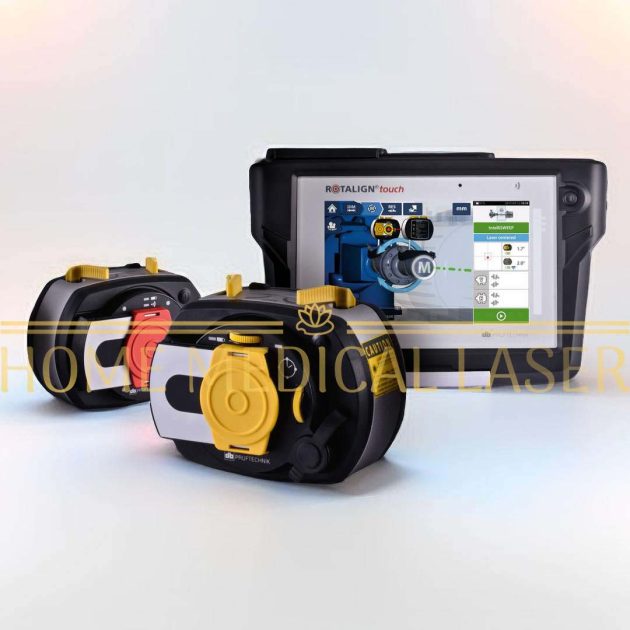

Pruftechnik Rotalign Touch Laser Shaft Alignment System For Sale with a Best Price Guided user interface, 3D machine animations, and tablet-like navigation for full control of your measurements .
The most versatile instrument for aligning a laser shaft, ROTALIGN touch has a simultaneous live Move mode and is powered by the special sensALIGN and intelliSWEEP measurement technologies.Prepare to adjust your alignment. With its capacitive touchscreen, 3D display animations, and wizard instruction, aligning is as simple as using a tablet or smartphone.Ability to Align AdaptivelySensALIGN 7, a single-laser system with intelligent SWEEP, POINT, and PASSActive Situational Intelligence responds instantly and in real time to particular alignment difficulties.Measurement of multiple coupling shafts and concurrent Live Move for a maximum of six couplings
Alignment of the Cardan shaft in situvertiSWEEP continuous measuring mode for vertical machine alignment Use Live Trend and Multi-coupling Live Trend to track temperature growth and pipe strain diagnosis of soft feet . Ability to Align Adaptively SensALIGN 7, a single-laser system with intelligent SWEEP, POINT, and PASS
Active Situational Intelligence responds instantly and in real time to particular alignment difficulties.
Measurement of multiple coupling shafts and concurrent Live Move for a maximum of six couplings
Alignment of the Cardan shaft in situ
vertiSWEEP continuous measuring mode for vertical machine alignment Use Live Trend and Multi-coupling Live Trend to track temperature growth and pipe strain diagnosis of soft feet .
Pruftechnik Rotalign Touch Laser Shaft Alignment Technology
The intrinsic PRUFTECHNIK single-laser technology, which is the foundation of the sensALIGN Series technology, offers extremely accurate measurement results as well as the simplest mounting and measuring in the field. Two HD big position-sensitive detectors (PSD) and MEMS inclinometers are among the sensALIGN 7 sensors. No matter how much of a misalignment there is, the initial alignment condition may always be measured and recorded when combined with the detector extension capacity (InfiniRange). Additionally, this technique enables the monitoring of machine adjustments in both vertical and horizontal directions at the same time, beginning at any angle where the sensor stops.
Pruftechnik Rotalign Touch Laser Shaft Alignment System Specifications:
CPU Processor: 1.0 GHz quad core ARM®Cortex-A9
Memory: 2 GB RAM, 1 GB Internal Flash, 32 GB SD-Card Memory
Display Technology: Projective capacitive multi-touch screen
Type: Transmissive (sunlight-readable) backlit TFT color graphic display Optically bonded, protective industrial display, integrated light sensor for automated adjustment of the brightness to the display
Resolution: 800 x 480 Pixel Dimensions: 178 mm (7”) diagonal
LED indicators 3 LEDs for battery status, 1 LED for WiFi communication
Power supply Operating time: 12 hours typical use (based upon an operating cycle of 25% measurement, 25% computation, 50% ‘sleep’ mode)
Battery: Lithium-ion rechargeable battery 3.6 V / 80 Wh AC adapter/charger: 12 V / 36 W; standard barrel connector (5.5 x 2.1 x 11 mm)
External interface USB host for memory stick USB slave for PC communication, charging (5 V DC / 1.5 A) RS-232 (serial) for sensor, RS-485 (serial) for sensor I-Data for sensor Integrated Bluetooth® wireless communication (covers direct line of sight distances of up to 30 m / 100 ft depending on the prevailing envir-onmental conditions) Integrated Wireless LAN IEEE 802.11 b/g/n up to 72.2 Mbps (depending on configuration) Integrated RFID with read and write capabilities (depending on con-figuration)
Environmental protection IP 65 (dustproof and water jets resistant) – as defined in regulation DIN EN 60529 (VDE 0470-1), shockproof Relative humidity: 10% to 90%
Drop test 1 m (3 1/4 ft)
Temperature range Operation: 0°C to 40°C (32°F to 104°F)
Charging: 0°C to 40°C (32°F to 104°F)
Storage: -10°C to 50°C (14°F to 122°F)
Dimensions Approx. 273 x 181 x 56 mm (10 3/4” x 7 1/8” x 2 3/16”)
Weight Approx. 1.88 kg (4.1 lbs)
Camera 5 MP built-in (depending on configuration) LEDs: Risk Group 1 according to IEC 62471:2006
CE conformity Refer to the CE compliance certificate in www.pruftechnik.com
FCC compliance Requirements fulfilled (refer to the provided document ‘Safety and gen-eral information’)
