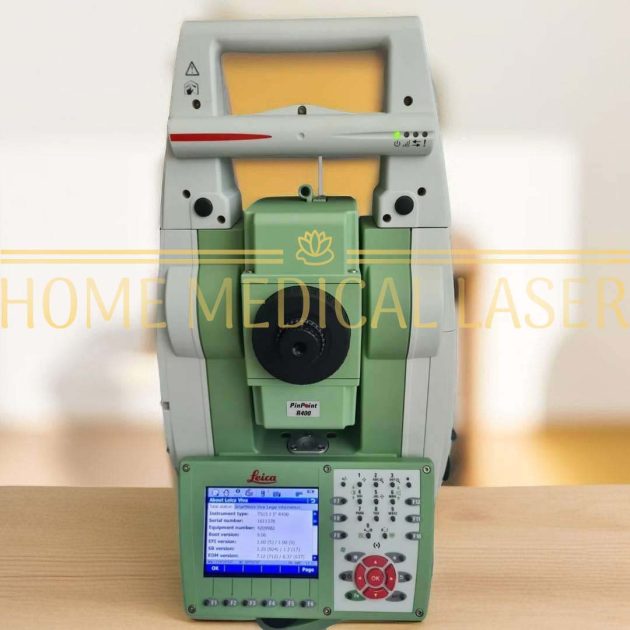

Leica Viva TS15 Robotic Imaging Total Station For Sale with a Best Price SmartWorx Viva onboard software, together with its superior imaging capabilities, makes this already quick total station even faster! The Leica Viva TS15 enhances the existing reliable total station sensors with an enhanced image sensor. Total station photos can be taken, augmented with sketching, and linked to any site of interest thanks to the special capture sketch-link feature. Any distant point can be measured using tap-turn-measure without having to go back to the total station. Every vision, regardless of scale, easily becomes a reality.
Best-in-class Imaging
Optimize your productivity with exact photo documentation of site conditions. With live streaming of the total station view, you always know what the total station sees. Measure all points without returning to the total station.
- Image Notes – Capture an image, screenshot or template, sketch on it and link it to any object in the database.
- Image Assisted Surveying – Simply tap on the display and the total station will turn and measure the desired target.
Best-in-class One-Person-Surveying
TS15 uses years of experience to optimally combine the world’s best total station sensors: angles, distances, drives and the patented PowerSearch target recognition camera.
- Search – the unique PowerSearch fi nds your prism within seconds
- Lock – stays locked onto your prism in the most demanding environments
- Measure – PinPoint EDM seamlessly harmonizes with precise angle sensors to complete the measurement process
GNSS Add-on
Add full GNSS functionality to your TS15 whenever you want and combine TPS and GNSS in the most efficient way
- Use SmartStation for TPS setup without the need of control points, traverses and resections
- Use SmartPole to save time with setup ‘On-the-fl y’ and measure parallel with TPS and GNSS for double productivity
Leica Viva TS15 Robotic Imaging Total Station Specifications:
| Angular Measurement | |
| Accuracy Hz, V | 3’’ (1 mgon) |
| Display resolution | 0.1’’ (0.1 mgon) |
| Method | absolute, continuous, diametrical |
| Compensation | Quadruple axis compensation |
| Compensator setting accuracy | 1.5’’ (0.5 mgon) |
| Distance Measurement | |
| Reflective tape (60 mm x 60 mm) | 250 m (800 ft) |
| Accuracy / Measurement Time | |
| Standard | 1 mm + 1.5 ppm / typ. 2.4 s |
| Fast | 3 mm + 1.5 ppm / typ. 0.8 s |
| Continuous | 3 mm + 1.5 ppm / typ. <0.15 s |
| Distance Measurement (Any Surface) | |
| Range | 400 m (1310 ft) |
| Accuracy / Measurement Time | 2 mm + 2 ppm / typ. 3 s |
| Distance Measurement (Long-range) | |
| Long-range | >10000 m (>32800 ft) |
| Accuracy / Measurement Time | Long-range: 5 mm + 2 ppm / typ. 2.5 s |
| General | |
| Display resolution | 0.1 mm |
| Shortest measurable distance | 1.5 m |
| Method | System analyzer based on phase shift measurement (coaxial, visible red laser) |
| Laser dot size (Non-Prism) | At 30 m: 7 mm x 10 mm, at 50 m: 8 mm x 20 mm |
| Operating system & Processor | |
| Operating System | Windows CE 6.0 |
| Processor | Freescale i.MX31 533 MHz ARM Core |
| Telescope | |
| Magnification | 30 x |
| Free objective aperture | 40 mm |
| Field of view | 1° 30’ (1.66 gon) / 2.7 m at 100 m |
| Focusing range | 1.7 m to infinity |
| Keyboard and Display | |
| Display | 640 x 480 pixel (VGA) color TFT with LED backlight and touch screen |
| Keyboard | 36 keys (12 function keys, 12 alphanumeric keys), illumination |
| Position | face I standard / face II optional |
| Memory, Ports & Communication | |
| Internal memory / Memory devices | 1 GB (nonvolatile NAND Flash) / SD card, USB stick |
| Interfaces | RS232, Bluetooth® Wireless-Technology, USB mini AB OTG |
| Operation | |
| Sensitivity of Circular level | 6’ / 2 mm |
| Centering accuracy of Laser plummet | 1.5 mm at 1.5 m |
| Number of drives | 1 horizontal / 1 vertical |
| Power Management | |
| Internal Battery | Lithium Ion |
| Operating Time | 5 – 8 h (GEB221) |
| Voltage / Capacity | 7.4 V / 4.4 Ah |
| Weight and Dimensions | |
| Weight of Total Station | 4.9 – 5.5 kg / 0.2 kg / 0.8 kg |
| Height / Width / Length | 345 mm / 226 mm / 203 mm |
| Environmental specifications | |
| Working / Storage temperature range | -20° C to +50° C / -40° C to +70° C |
| Dust / water (IEC 60529) / Humidity | IP55 / 95%, non-condensing |
Leica Viva TS15 Robotic Imaging Total Station Package Included :
TS15
GDF321 Tribrach
New GEB221 Batteries x 2
GKL341 Charger & Mains
RH17 Radio handle
GRZ4 360 Degree Prism
GLS12 Detail Pole
GST20 Wooden Tripod
GHM007 Height Meter
GHT196 Holder
CS15 Controller
CTR17
MSD1000 SD Card
GHT62 Holder
GHT63 Clamp
GHT61 Hand Strap
New GEB212 Batteries x 2
2 x Carry cases
